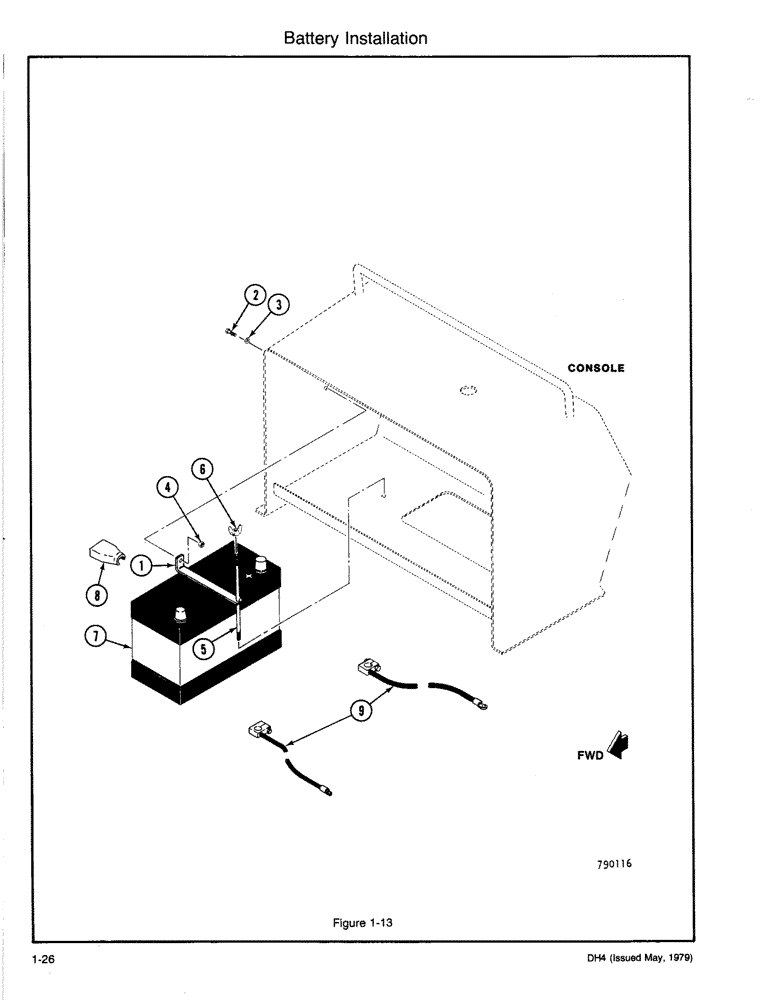

Запчасти Case DH4 (1-26) - BATTERY INSTALLATION (55) - ELECTRICAL SYSTEMS

1

H372698

STRAP

- Battery, Includes: Refs. 2-4

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

3

195-521

WASHER,5/16", SAE

- Flat (5/16)

1шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

1шт.

5

H376384

BOLT

- Battery Hold Down

1шт.

6

129-419

WING NUT,5/16"-18

NUT - Wing

2шт.

7

L73867

DRY BATTERY

1шт.

8

H102681

COVER ASSY

CAP - Battery

1шт.

9

H172304

NEG BATTERY CABLE

CABLE - Battery

2шт.

H409821 Battery Cover.

1шт.
