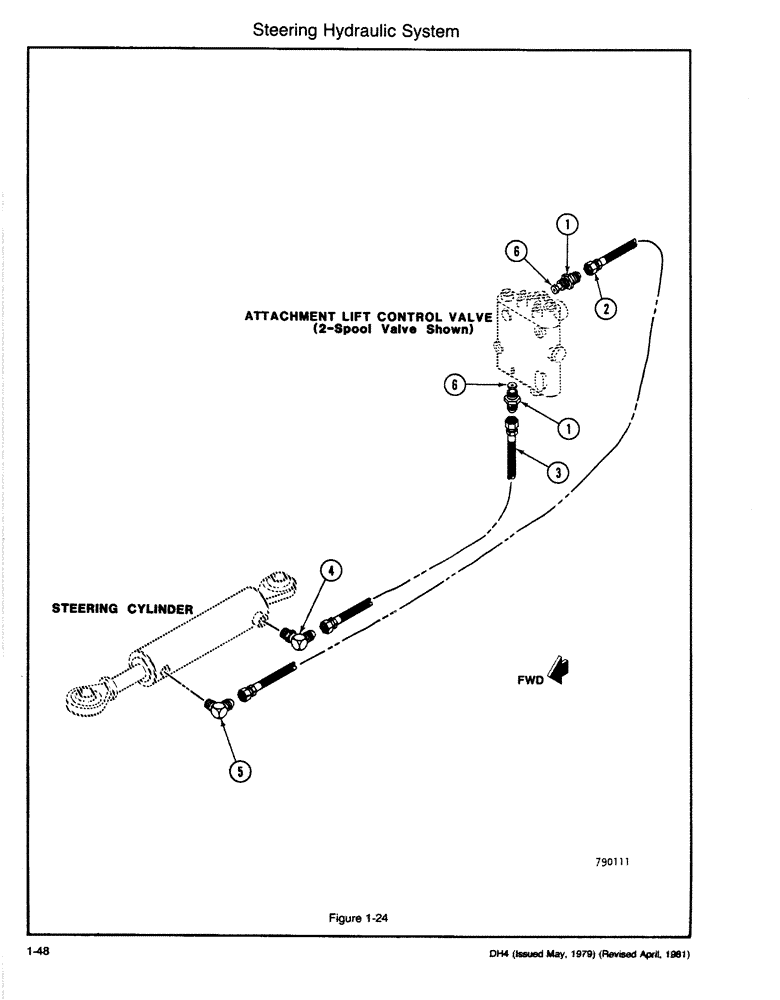

Запчасти Case DH4 (1-48) - STEERING HYDRAULIC SYSTEM (41) - STEERING

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB & 9/16 JIC M)

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

2

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

6.35 mm ID x 1524.00 mm, SAE 100R1

1шт.

3

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB & 9/16 JIC M)

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree (3/8 MP & 9/16 JIC M)

1шт.

6

H392332

ORIFICE

- (.055)

2шт.
