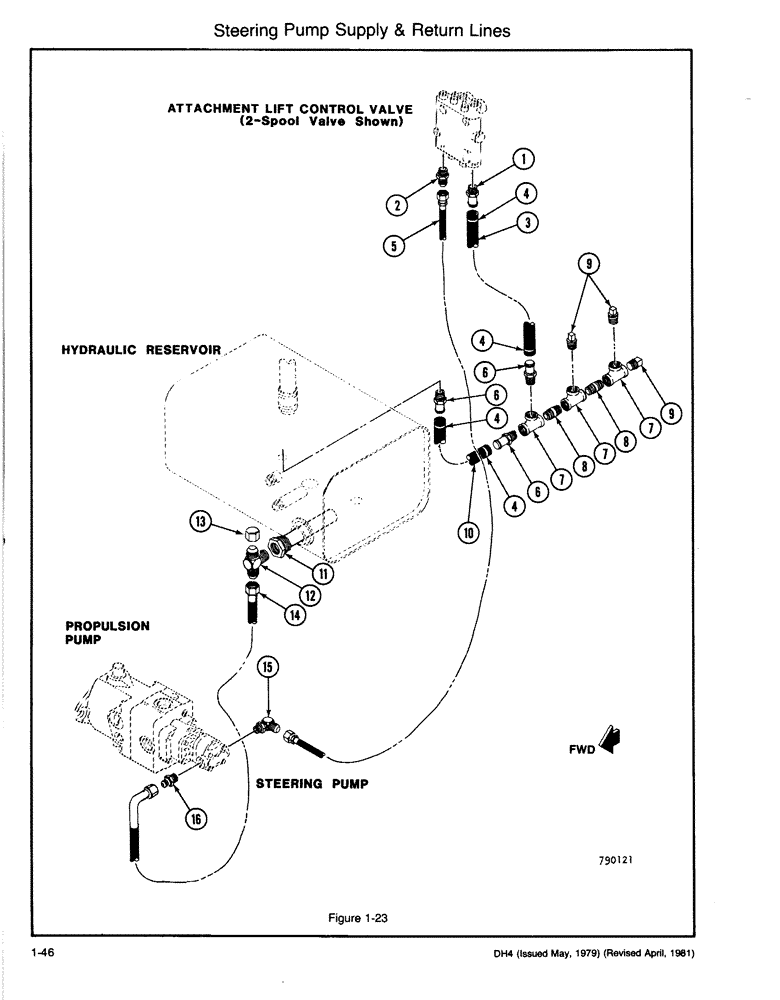

Запчасти Case DH4 (1-46) - STEERING PUMP SUPPLY & RETURN LINES (41) - STEERING

1

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

CONNECTOR - (3/4 ORB x 3/4 Hose Barb)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

1шт.

3

H358093

HOSE ASSY.

HOSE - 3/4 x 16

1шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

4шт.

5

H323881

HYDRAULIC HOSE,9.52 mm ID x 2032.00 mm, SAE 100R1

(3/4 JIC Fe Swv Both Ends) 9.52 mm ID x 2032.00 mm, SAE 100R1

1шт.

6

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 MP x 3/4 Hose Barb)

3шт.

7

221-425

FITTING,3/4" NPT

TEE- Pipe (3/4)

3шт.

8

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - Pipe (3/4)

2шт.

9

221-48

PLUG

- Pipe (3/8)

3шт.

10

H309039

LARGE HOSE

HOSE - 3/4 x 38

1шт.

11

H584631

FILTER ASSY

SCREEN - Suction

1шт.

12

H383125

TEE

- (1 MP x 1-1/16 JIC M x 1-1/16 JIC M)

1шт.

13

218-335

CAP,37 Degree, 1 1/16"-12

- Tube (1-1/16 JIC)

1шт.

14

H265496

HOSE

- 3/4 x 20 (1-1/16 JIC Fe Swv x 1-1/16 JIC Fe Swv)

1шт.

15

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree (9/16 ORB x 3/4 JIC M)

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

16

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 1-1/16 JIC M)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
