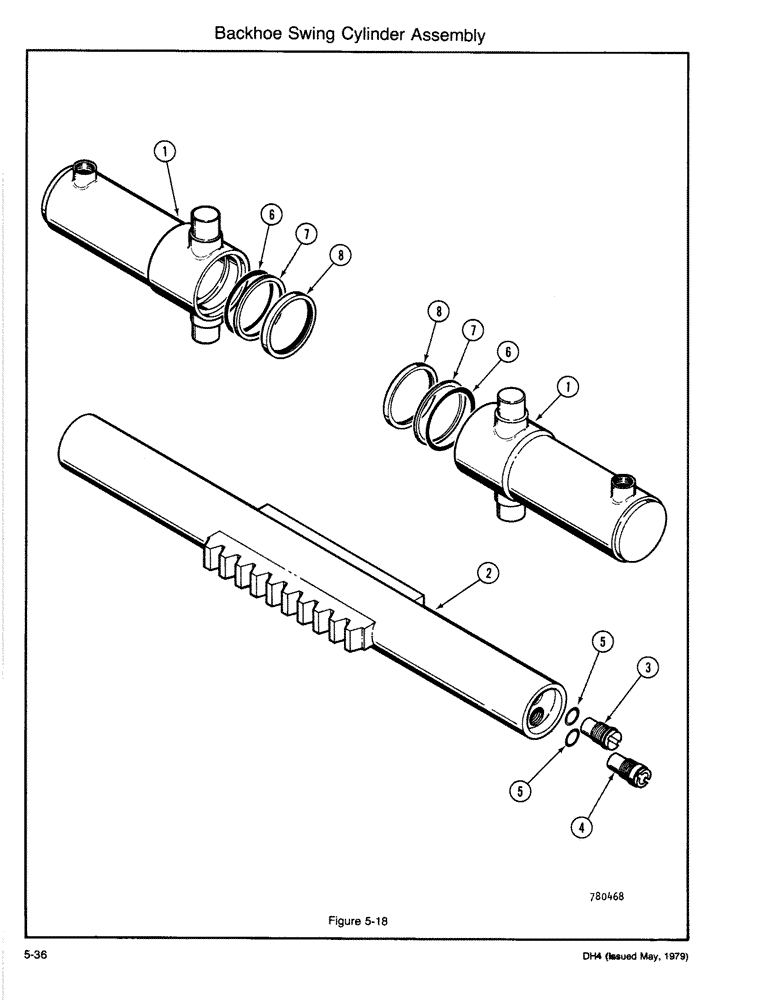

Запчасти Case DH4 (5-36) - BACKHOE SWING CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY - Backhoe Swing, Includes: Refs. 1-8

1шт.

1

H392068

BARREL

2шт.

2

H53017

PISTON ROD

ROD - Piston

1шт.

3

H53025

LOCK VALVE

VALVE ASSEMBLY - Relief, 2000 PSI (Includes O-Ring)

1шт.

4

H53033

LOCK VALVE

VALVE ASSEMBLY - Relief, 2000 PSI (Includes O-Ring)

1шт.

H53041

SEAL ASSY.

KIT - Seal Repair, Includes: Refs. 5-8

1шт.

5

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

6

H743591

O-RING

2шт.

7

S114167

BACK-UP RING

WASHER - Backup

2шт.

8

H215202

SEAL ASSY.

SEAL - Dust

2шт.
