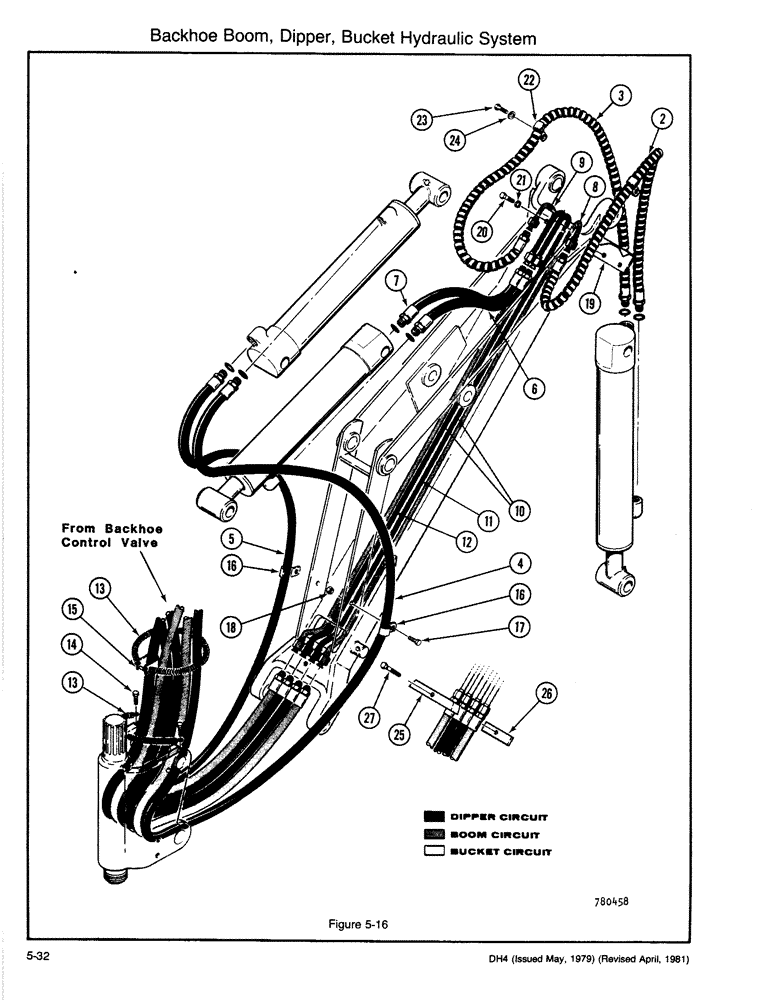

Запчасти Case DH4 (5-32) - BACKHOE BOOM, DIPPER, BUCKET HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

2

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

1шт.

2

H383976

HOSE,9.5mm ID x 1880mm L, SAE 100R1

D-100XR 9.50 mm ID x 1880.00 mm, SAE 100R1

1шт.

3

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

(3/4 ORB x 3/4 JIC M) - D-100 9.52 mm ID x 1066.80 mm, SAE 100R1

1шт.

3

H383984

HOSE,9.50 mm ID x 1397.00 mm, SAE 100R1

9.50 mm ID x 1397.00 mm, SAE 100R, D-100XR

1шт.

4

H360412

HOSE,0.38" ID x 75.00", SAE 100R1

) 0.38" ID x 75.00", SAE 100R1

1шт.

5

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

1шт.

6

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

(3/4 ORB x 3/4 JIC M) 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

7

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

8

H593376

TUBE,0.5" OD

- Bucket Cylinder - D-100

1шт.

8

H645424

TUBE ASSY.,0.5" OD

TUBE - Bucket Cylinder - D-100XR

1шт.

9

H59384

TUBE - Bucket Cylinder - D-100

1шт.

9

H645416

TUBE ASSY.,0.5" OD

TUBE - Bucket Cylinder - D-100XR

1шт.

10

H593392

TUBE,0.5" OD

- Boom Cylinder - D-100

2шт.

11

H645440

TUBE,0.5" OD

- Boom Cylinder - D-100XR

1шт.

12

H645432

TUBE ASSY.,12.7 mm OD x 847, 37 mm L

TUBE - Boom Cylinder - D-100XR

1шт.

13

H52548

SPRING

Includes: Ref. 14

2шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

H52571

CLAMP

- Hose

1шт.

16

H51763

CLAMP

- Hose, Includes: Refs. 17, 18

2шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

19

H386425

HOSE CLAMP

CLAMP - Hose

1шт.

H61069

FLAP

CUSHION - Anti-Wear (Not Shown), Includes: Refs. 20, 21

1шт.

20

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

280736

NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

22

H276758

CLAMP

- Hose

2шт.

23

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

24

280129

NUT,1/4"-20

NUT, LOCK, 1/4"-20, GC

2шт.

25

H52589

CLAMP

- Tube

1шт.

26

H51748

CLAMP

- Base, Includes: Ref. 27

1шт.

27

131-121

SPRING NUT,Tinn, U, #10-24

BOLT - Hex Hd (5/16 x 2)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.
