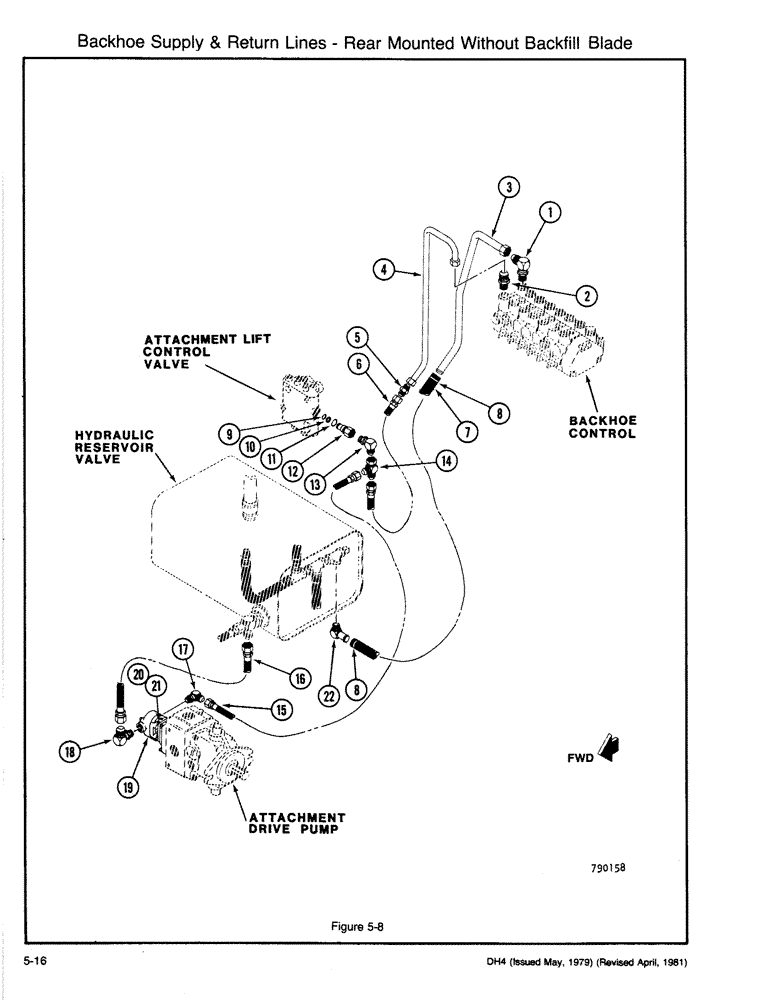

Запчасти Case DH4 (5-16) - BACKHOE SUPPLY & RETURN LINES - REAR MOUNTED WITHOUT BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree (3/4 ORB x 1-1/16 JIC M)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - (3/4 ORB x 7/8 JIC M)

1шт.

3

H645044

TUBE ASSY.,19.05 mm OD

TUBE - Return

1шт.

4

H645051

TUBE ASSY.,15.88 mm OD

TUBE - Pressure

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - (7/8 JIC M Ends)

1шт.

6

H352575

HOSE,0.50" ID x 34.00, SAE 100R2A

1шт.

7

H307777

HOSE ASSY.

HOSE - (3/4 x 18)

1шт.

8

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

H347906

FITTING

ADAPTER - Pressure Beyond, Includes: Refs. 9-12

1шт.

9

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

10

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

11

A26872

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 7/8 JIC M)

1шт.

14

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

- (7/8 ORB x 7/8 JIC M x 3/4 JIC M)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (7/8)

1шт.

15

H323881

HYDRAULIC HOSE,9.52 mm ID x 2032.00 mm, SAE 100R1

(3/4 JIC Fe Swv Ends) 9.52 mm ID x 2032.00 mm, SAE 100R1

1шт.

16

H281683

HOSE - 3/4 x 46 (1-1/16 JIC Fe Swv Ends)

1шт.

17

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree (9/16 ORB x 3/4 JIC M)

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

18

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree (3/4 ORB x 1-1/16 JIC M)

1шт.

19

H588418

PUMP

ASSEMBLY - (See Figure 4-16), Includes: Refs. 20, 21

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degree (3/4 NPT x 3/4 Barb)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.
