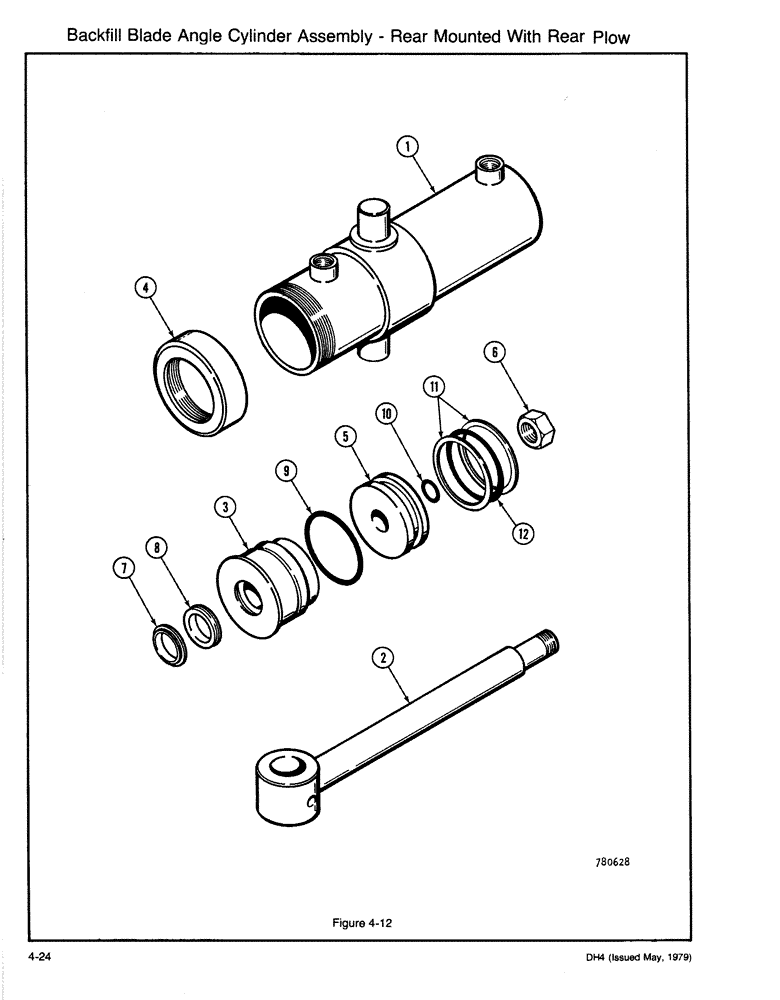

Запчасти Case DH4 (4-24) - BACKFILL BLADE ANGLE CYLINDER ASSEMBLY - REAR MOUNTED WITH REAR PLOW (35) - HYDRAULIC SYSTEMS

H583542

CYLINDER BLOCK

CYLINDER ASSEMBLY - Backfill Blade Angle, Includes: Refs. 1-12

2шт.

1

H591271

TUBE ASSY.

BARREL - Cylinder

1шт.

2

H591263

ROD

- Piston

1шт.

3

H274035

GLAND

1шт.

4

H232116

COLLAR

- Gland

1шт.

5

H247023

PISTON

1шт.

6

131-1172

LOCK NUT,3/4"-16, GA

NUT - Lock

1шт.

H591255

SEAL

KIT - Seal Repair, Includes: Refs. 7-12

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - Gland Static

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Rod Static

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - Piston

1шт.
