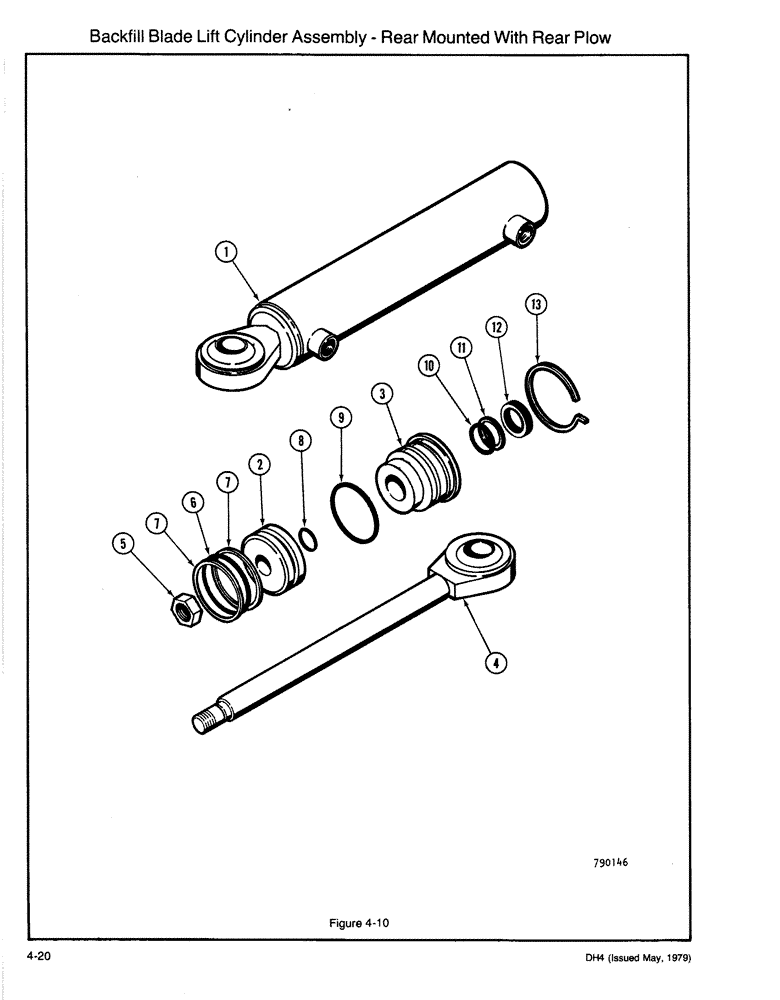

Запчасти Case DH4 (4-20) - BACKFILL BLADE LIFT CYLINDER ASSEMBLY - REAR MOUNTED WITH REAR PLOW (35) - HYDRAULIC SYSTEMS

H621367

CYLINDER BLOCK

CYLINDER ASSEMBLY - Backfill Blade Lift, Includes: Refs. 1-13

1шт.

1

H630160

CYLINDER

BARREL

1шт.

2

H347757

PISTON

1шт.

3

H347765

GLAND

1шт.

4

H630178

ROD

- Piston

1шт.

5

230-46112

LOCK NUT,3/4"-16, GA

NUT - Piston

1шт.

H630186

GASKET KIT

KIT - Seal Repair, Includes: Refs. 6-13

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - Piston Seal

1шт.

7

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING - Rod Static Seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - Gland Static Seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - Rod Seal

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - Gland Retaining

1шт.
