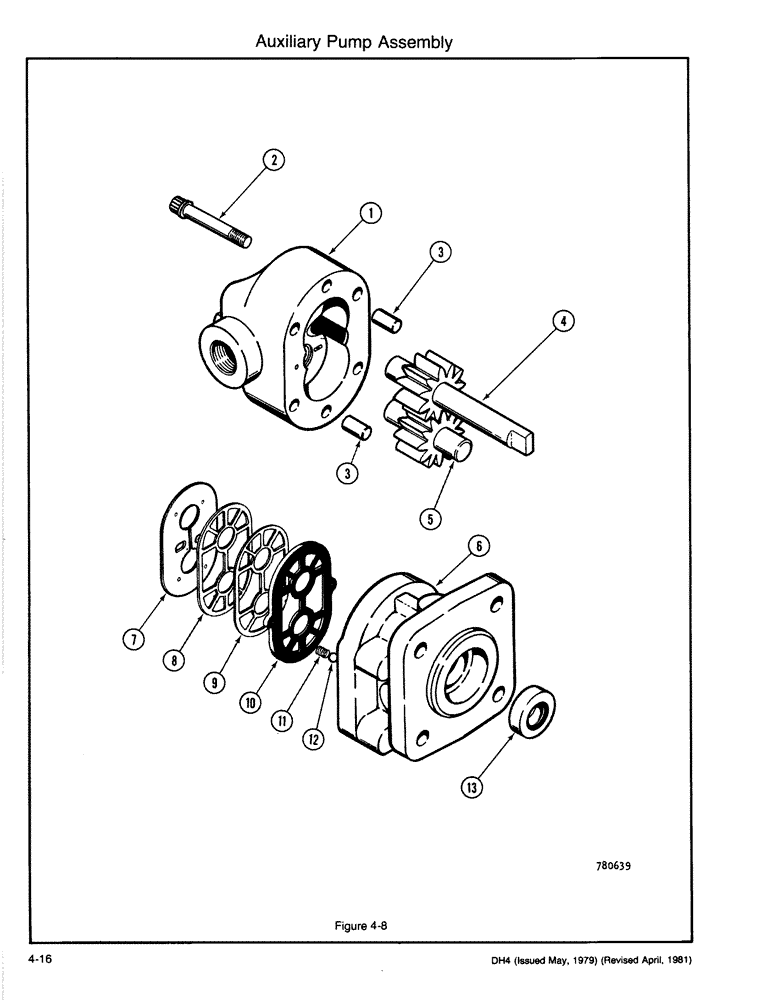

Запчасти Case DH4 (4-16) - AUXILIARY PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS

H588418

PUMP

ASSEMBLY - Auxiliary, Includes: Refs. 1-13

2шт.

1

H646257

HOUSING

- Back

1шт.

2

166-10

BOLT

4шт.

3

H754580

DOWEL

PIN - Dowel

2шт.

4

H591594

GEAR

- Drive

1шт.

5

H591602

GEAR

- Idler

1шт.

6

H646265

LARGE PLATE

PLATE - Front

1шт.

H591503

SEAL ASSY.

KIT - Seal Repair, Includes: Refs. 7-13

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - Backup

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - Protector

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Diaphragm

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING

2шт.

12

NSS

NOT SOLD SEPARAT

BALL - Steel

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.
