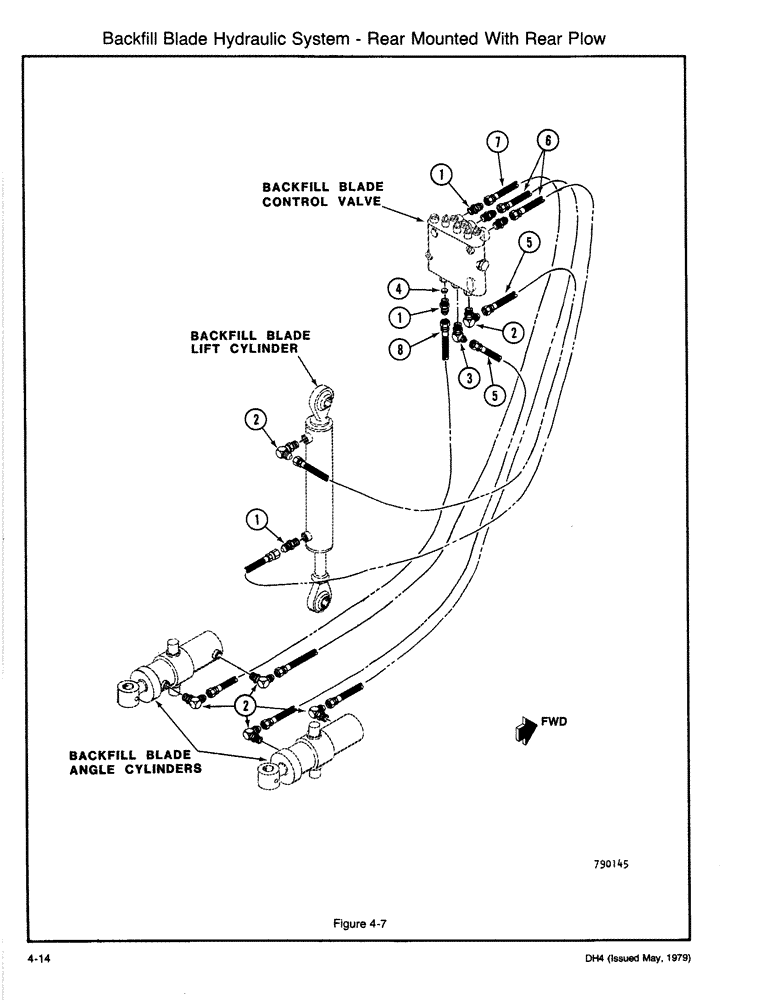

Запчасти Case DH4 (4-14) - BACKFILL BLADE HYDRAULIC SYSTEM - REAR MOUNTED WITH REAR PLOW (35) - HYDRAULIC SYSTEMS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

5шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

6шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree (9/16 ORB x 9/16 JIC M)

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

4

H746875

SCREW

PLATE - Orifice (.043)

1шт.

5

H307959

HOSE ASSY.

HOSE - 1/4 x 52 (9/16 JIC Fe Swv Ends)

2шт.

6

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

6.35 mm ID x 1524.00 mm, SAE 100R1

2шт.

7

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

6.35 mm ID x 838.20 mm, SAE 100R1

1шт.

8

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.
