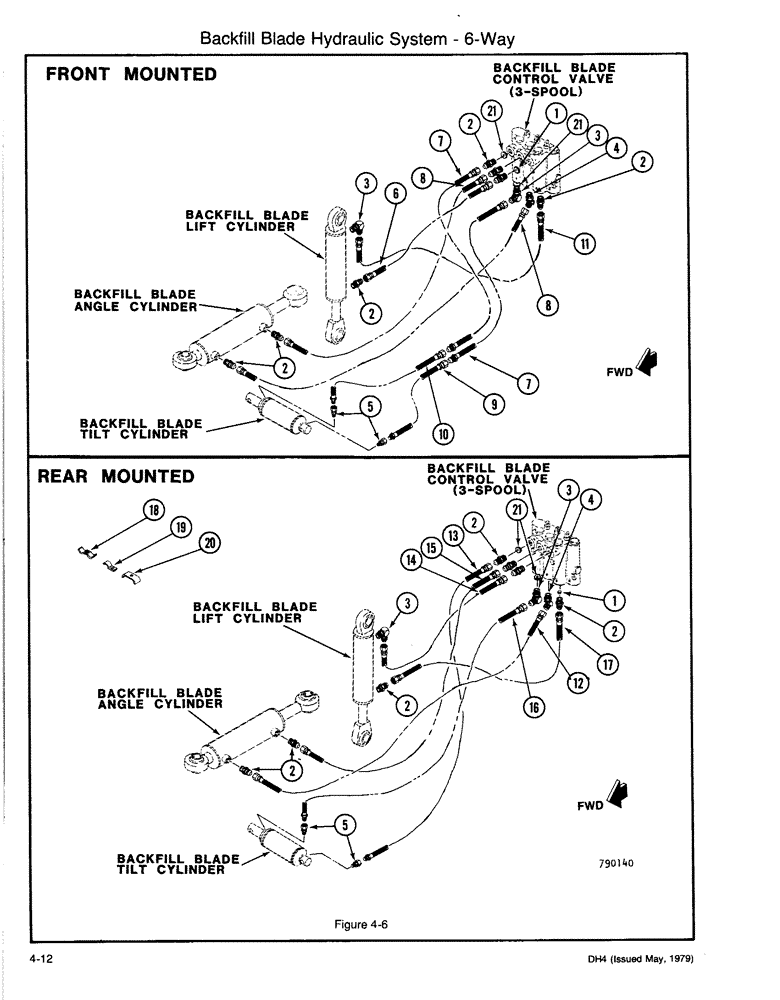

Запчасти Case DH4 (4-12) - BACKFILL BLADE HYDRAULIC SYSTEM - 6-WAY (35) - HYDRAULIC SYSTEMS

1

H746875

SCREW

PLATE - Orifice (.043)

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

7шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

4

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree (9/16 ORB x 9/16 JIC M)

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

5

218-909

HYD CONNECTOR,1/8" NPT x 1/4" NPSM Fem

CONNECTOR - (1/8 MP x 1/4 Fe P)

2шт.

6

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

1шт.

Used With Front Mounted 6-Way Backfill Blade.

1шт.

7

H256511

HYDRAULIC HOSE,6.35 mm ID x 1955.80 mm, SAE 100R1A

6.35 mm ID x 1955.80 mm, SAE 100R1A

2шт.

Used With Front Mounted 6-Way Backfill Blade.

1шт.

8

H379990

HOSE,0.25" ID x 147.64", SAE 100R1A

2шт.

Used With Front Mounted 6-Way Backfill Blade.

1шт.

9

H195339

HOSE ASSY.

HOSE - 1/4 x 84 (1/4 MP x 9/16 JIC Fe Swv)

1шт.

Used With Front Mounted 6-Way Backfill Blade.

1шт.

10

H209023

HOSE ASSY.

HOSE - 1/4 x 59 (1/4 MP x 9/16 JIC Fe Swv)

1шт.

Used With Front Mounted 6-Way Backfill Blade.

1шт.

11

H373647

HOSE

- 1/4 x 3300 mm (9/16 JIC Fe Swv Ends)

1шт.

Used With Front Mounted 6-Way Backfill Blade.

1шт.

12

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

1шт.

Used With Rear Mounted 6-Way Backfill Blade.

1шт.

13

H195339

HOSE ASSY.

HOSE - 1/4 x 84 (1/4 MP x 9/16 JIC Fe Swv)

1шт.

Used With Rear Mounted 6-Way Backfill Blade.

1шт.

14

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

Used With Rear Mounted 6-Way Backfill Blade.

1шт.

15

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

1шт.

Used With Rear Mounted 6-Way Backfill Blade.

1шт.

16

H209023

HOSE ASSY.

HOSE - 1/4 x 59 (1/4 MP x 9/16 JIC Fe Swv)

1шт.

Used With Rear Mounted 6-Way Backfill Blade.

1шт.

17

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

6.35 mm ID x 838.20 mm, SAE 100R1

1шт.

Used With Rear Mounted 6-Way Backfill Blade.

1шт.

18

H59345

CLAMP

- Hose

1шт.

19

H185819

CLAMP

- Hose

1шт.

20

H45468

CLAMP

- Hose

1шт.

21

H757815

PORT

PLATE - Orifice (.038)

2шт.
