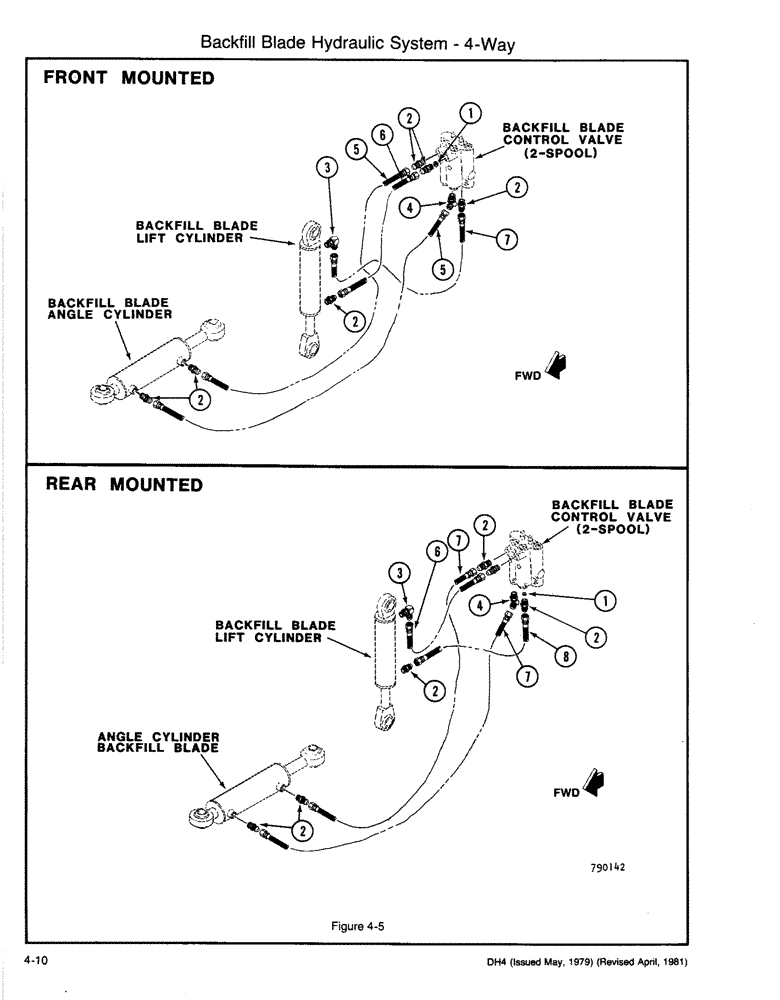

Запчасти Case DH4 (4-10) - BACKFILL BLADE HYDRAULIC SYSTEM - 4-WAY, FRONT MOUNTED, REAR (35) - HYDRAULIC SYSTEMS

1

H746875

SCREW

PLATE - Orifice (.043), front mounted

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9.16 ORB x 9/16 JIC M), front mounted

6шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M), front mounted

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

4

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree (9/16 ORB x 9/16 JIC M), front mounted

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

5

H379990

HOSE,0.25" ID x 147.64", SAE 100R1A

Front Mounted 0.25" ID x 147.64", SAE 100R1A

2шт.

6

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

Front Mounted 0.25" ID x 122.05", SAE 100R1A

1шт.

7

H373647

HOSE

- 1/4 x 3300 mm (9/16 JIC Fe Swv Ends), front mounted

1шт.

1

H746875

SCREW

PLATE - Orifice (.043), rear mounted

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M), rear mounted

6шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M), rear mounted

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

4

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree (9/16 ORB x 9/16 JIC M), rear mounted

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

6

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

Rear Mounted 6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

7

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

Rear Mounted 6.35 mm ID x 1905.00 mm, SAE 100R1

2шт.

8

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

Rear Mounted 6.35 mm ID x 838.20 mm, SAE 100R1

1шт.
