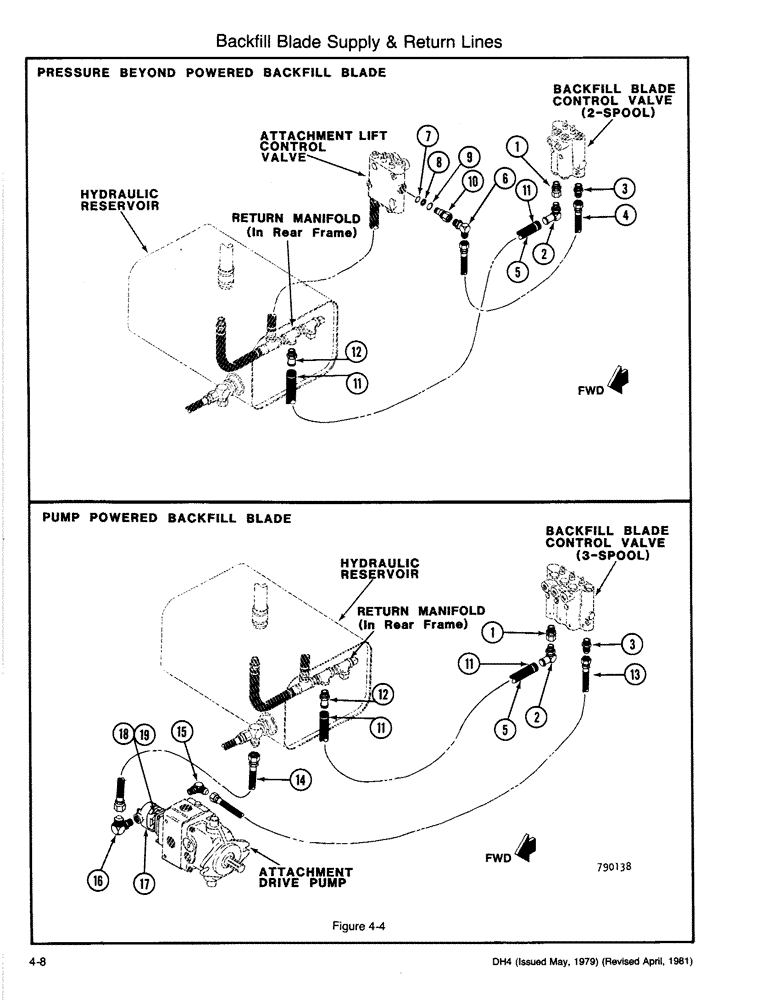

Запчасти Case DH4 (4-08) - BACKFILL BLADE SUPPLY & RETURN LINES (35) - HYDRAULIC SYSTEMS

1

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

CONNECTOR - (3/4 ORB x 1/2 Fe P)

1шт.

2

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

- 90 degree (1/2 Male P x 3/4 Barb)

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

1шт.

4

H205948

HOSE

- 3/8 x 22 (3/4 JIC Fe Swv Ends)

1шт.

5

H358093

HOSE ASSY.

HOSE - 3/4 x 16

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree ( 3/4 ORB x 3/4 JIC M)

1шт.

H347906

FITTING

ADAPTER - Power Beyond, Includes: Refs. 7-10

1шт.

7

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

8

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

9

D26872

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

BODY

1шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

12

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 Male P x 3/4 Barb)

1шт.

13

H323881

HYDRAULIC HOSE,9.52 mm ID x 2032.00 mm, SAE 100R1

(3/4 JIC Fe Swv Ends) 9.52 mm ID x 2032.00 mm, SAE 100R1

1шт.

14

H281683

HOSE - 34 x 46 (1-1/16 JIC Fe Swv Ends)

1шт.

15

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree (9/16 ORB x 1-1/16 JIC M)

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

16

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree (3/4 ORB x 1-1/16 JIC Fe Swv Ends)

1шт.

17

H588418

PUMP

ASSEMBLY - (See Figure 4-16), Includes: Refs. 18, 19

1шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.
