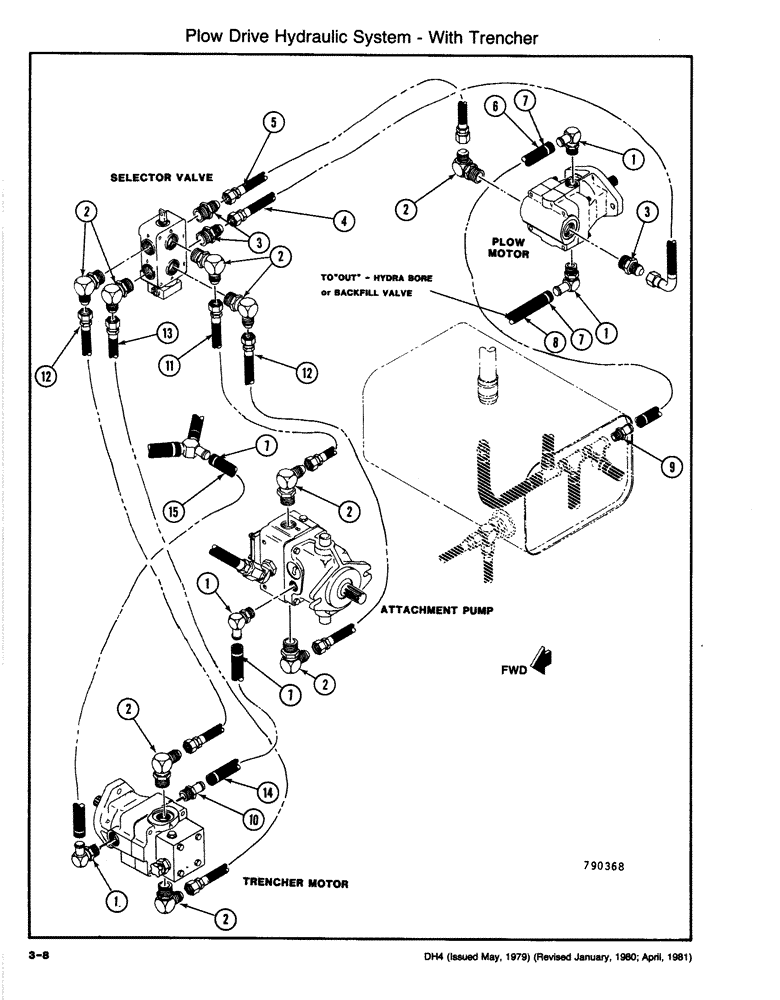

Запчасти Case DH4 (3-08) - PLOW DRIVE HYDRAULIC SYSTEM - WITH TRENCHER (35) - HYDRAULIC SYSTEMS

1

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1-1/16 ORB x 3/4 Barb)

4шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- ( 1-1/16)

1шт.

2

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree (1-5/16 ORB x 1-1/16 JIC M)

9шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16)

1шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1-5/16 ORB x 1-1/16 JIC M)

3шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16)

1шт.

4

H373621

HOSE

- 3/4 x 3650 mm (1-5/16 JIC Fe Swv - Bent Tube)

1шт.

5

H373613

HOSE

- 3/4 x 3500 mm (1-5/16 JIC Swv Ends)

1шт.

6

H338095

HOSE

- 3/4 x 61

1шт.

7

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

8шт.

8

H337915

HOSE ASSY.

HOSE - 3/4 x 103

1шт.

9

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 MP x 3/4 Barb)

1шт.

10

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

CONNECTOR - (1 1/16 ORB x 3/4 Barb)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (1-1/16)

1шт.

11

H336974

HOSE,0.75" ID x 30.00", SAE 100R9

1шт.

12

H388207

HOSE ASSY.

HOSE - 3/4 x 560 mm (1-1/16 JIC Fe Swv Ends)

2шт.

13

H388215

HOSE ASSY.

HOSE - 3/4 x 30 (1-1/16 JIC Fe Swv Ends)

1шт.

14

H309039

LARGE HOSE

HOSE - 3/4 x 38

1шт.

15

H307769

HOSE ASSY.

HOSE - 3/4 x 42

1шт.
