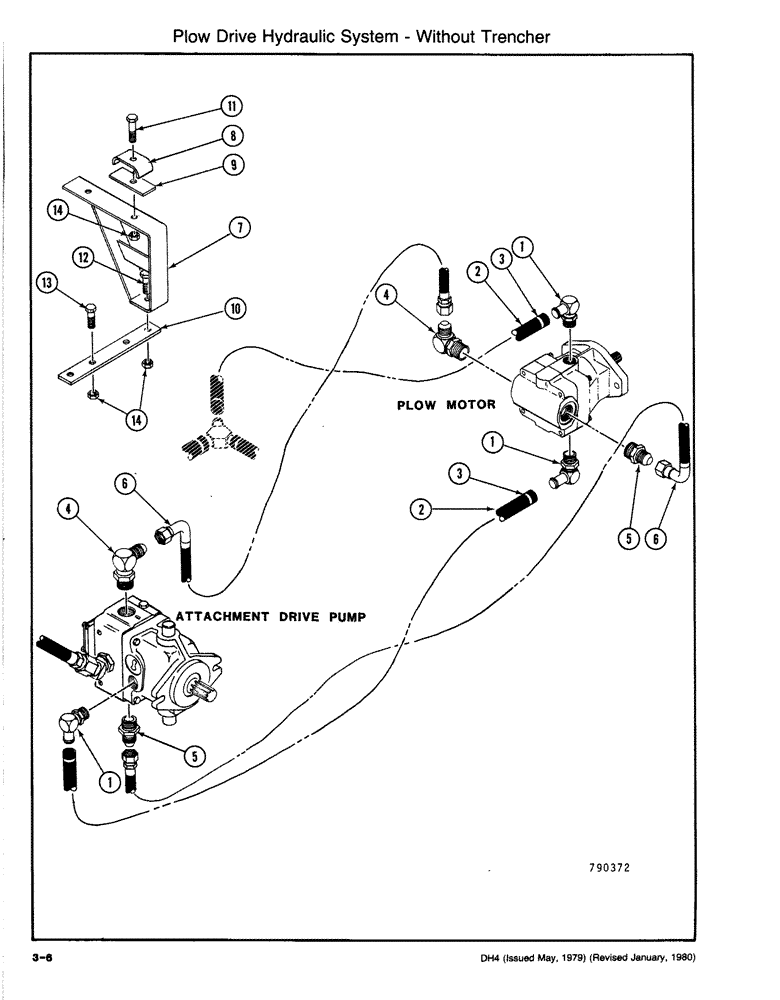

Запчасти Case DH4 (3-06) - PLOW DRIVE HYDRAULIC SYSTEM - WITHOUT TRENCHER (35) - HYDRAULIC SYSTEMS

1

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1 1/16 ORB x 3/4 Barb)

3шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (1-1/16)

1шт.

2

H376061

HOSE

- 3/4 x 160

2шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

4шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree (1-5/16 ORB x 1-1/16 JIC M)

2шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16)

1шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1-5/16 ORB x 1-1/6 JIC M)

2шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16 ORB)

1шт.

6

H384677

HOSE

- 3/4 x 3300 mm (1-1/16 JIC Fe Swv Ends - 90 degree Bent Tube)

2шт.

7

H629295

BRACKET

- Hose

1шт.

8

H231878

CLAMP

- Hose

2шт.

9

H231860

COVER

PAD - Clamp

2шт.

10

H388553

PLATE

- Hose Bracket

1шт.

11

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

13

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

14

131-412

NUT - Hex (1/2 NC - Lock)

5шт.
