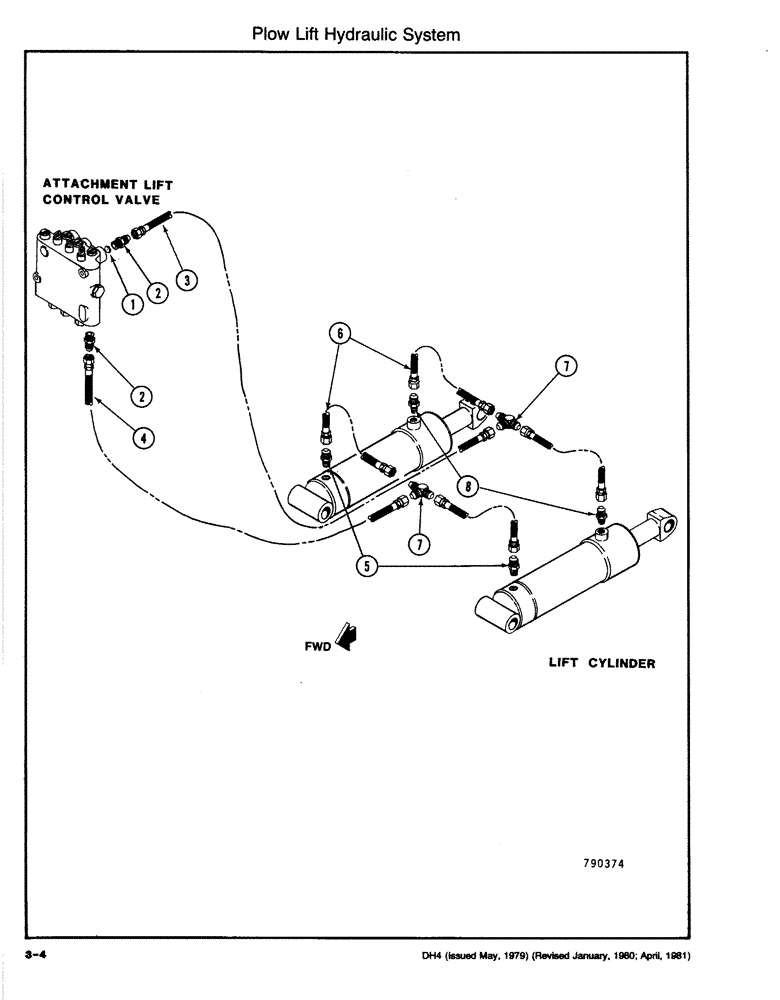

Запчасти Case DH4 (3-04) - PLOW LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H746875

SCREW

PLATE - Orifice

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

3

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

6.35 mm ID x 838.20 mm, SAE 100R1

1шт.

4

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

5

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

2шт.

6

H234245

HYDRAULIC HOSE,6.35 mm ID x 406.40 mm, SAE 100R1

6.35 mm ID x 406.40 mm, SAE 100R1

4шт.

7

218-3093

TEE - (9/16 JIC M Ends)

2шт.

8

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (9/16 JIC M x 3/8 MP)

2шт.
