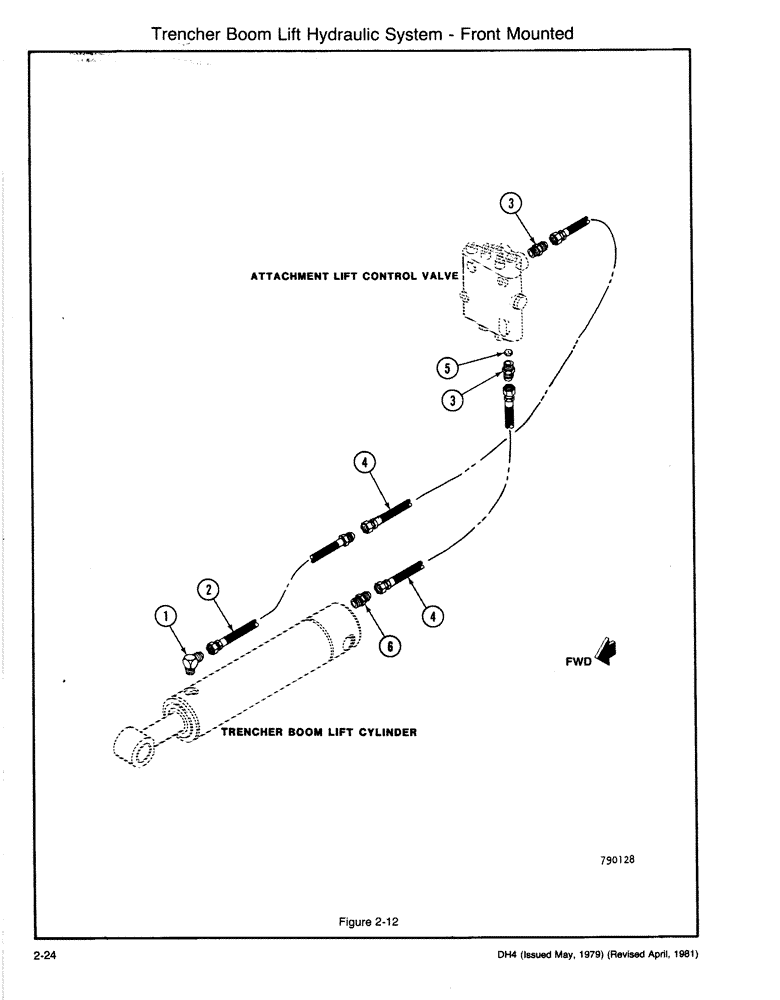

Запчасти Case DH4 (2-24) - TRENCHER BOOM LIFT HYDRAULIC SYSTEM - FRONT MOUNTED (35) - HYDRAULIC SYSTEMS

1

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree (3/4 MP & 9/16 JIC M)

1шт.

2

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

6.35 mm ID x 533.40 mm, SAE 100R

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB & 9/16 JIC M)

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- (9/16)

1шт.

4

H350942

HOSE,0.25" ID x 140.00", SAE 100R1

2шт.

5

H746875

SCREW

ORIFICE - (.043)

1шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - (3/4 ORB & 9/16 JIC M)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.
