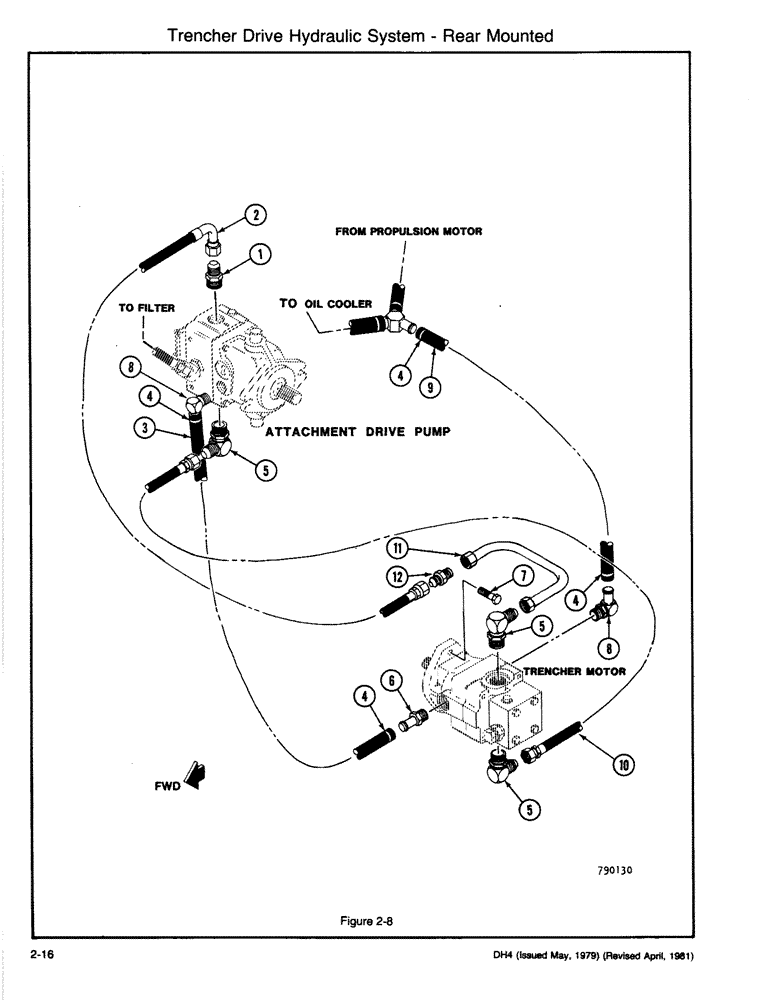

Запчасти Case DH4 (2-16) - TRENCHER DRIVE HYDRAULIC SYSTEM - REAR MOUNTED (35) - HYDRAULIC SYSTEMS

1

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1 5/16 ORB & 1-1/16 JIC M)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1 5/16)

1шт.

2

H379974

HOSE & TUBE - 3/4 x 2000 mm (1-1/16 JIC Fe Swv Ends)

1шт.

3

H337899

HOSE ASSY.

HOSE - 3/4 x 84 mm

1шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

4шт.

5

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree (1-5/16 ORB & 1-1/16 JIC M)

3шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16)

1шт.

6

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

CONNECTOR - (1-1/16 ORB & 3/4 Hose Barb)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (1-1/16)

1шт.

7

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1-1/16 ORB & 3/4 Hose Barb)

2шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (1-1/16)

1шт.

9

H337899

HOSE ASSY.

HOSE - 3/4 x 84

1шт.

10

H380105

HOSE,0.75" ID x 84.65", SAE 100R9

1шт.

11

H400549

TUBE 19.1 mm OD

1шт.

12

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

CONNECTOR - (1-1/16 JIC M Ends)

1шт.
