Запчасти Case DH4 (1-78) - ATTACHMENT LIFT CONTROL VALVE - 3-SPOOL, BACKFILL BLADE CONTROL VALVE ASSEMBLY- 6 WAY (35) - HYDRAULIC SYSTEMS

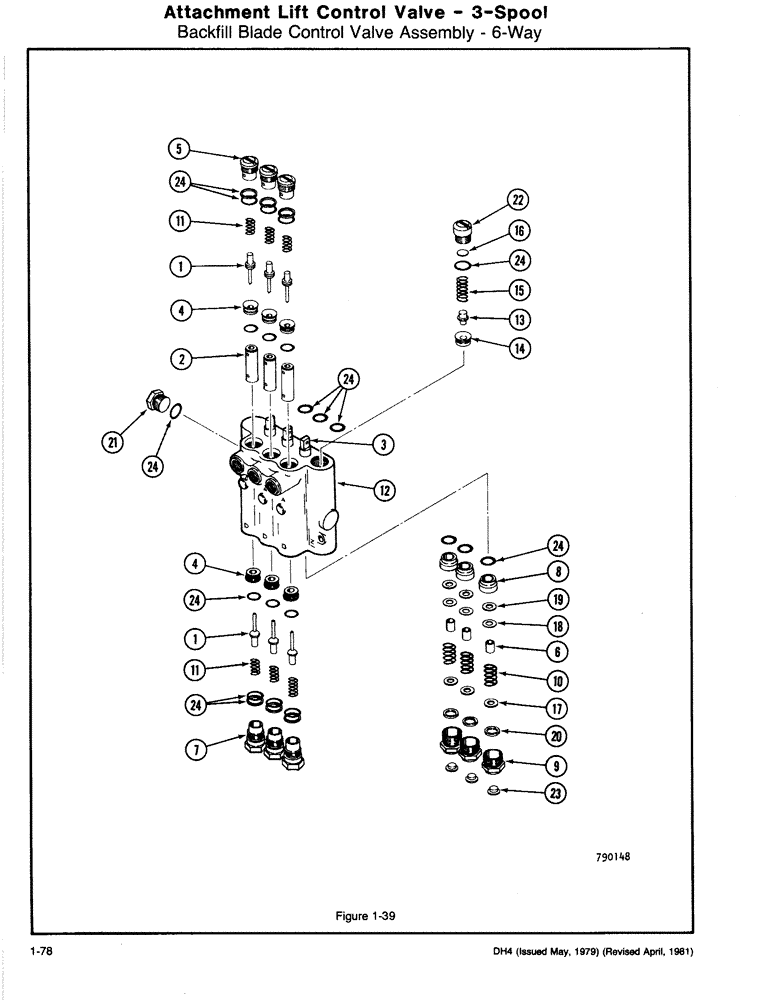

Схема запчастей Case DH4 - (1-78) - ATTACHMENT LIFT CONTROL VALVE - 3-SPOOL, BACKFILL BLADE CONTROL VALVE ASSEMBLY- 6 WAY (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

H641050

LOCK VALVE

VALVE ASSEMBLY - Attachment Lift Control, 6-Way Backfill Blade Control, Includes: Refs. 1-24

1шт.

1

F88777

PLUNGER

POPPET - (Included in Seal Repair Kit)

6шт.

2

F8229

PLUNGER

- Lockout

3шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

3шт.

4

H636951

SEAT

- (Includes O-Ring)

6шт.

5

H636977

PLUG

- Seat Retainer (Includes O-Ring & Backup Washer)

3шт.

6

F36239

SPACER

- Spool

3шт.

7

H636969

FITTING

PLUG - (Includes O-Ring & Backup Washer)

3шт.

8

F36304

BUSHING

3шт.

9

H375667

CAP

3шт.

10

F36306

SPRING

- Spool

3шт.

11

H364182

SPRING

- Lockout

6шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

H83931

VALVE POPPET

POPPET - Relief Valve

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - Relief Valve

1шт.

15

L33609

SPRING

- Relief Valve (Purple)

1шт.

16

H746149

SHIM,.015" Thk

Relief valve .015" Thk

1шт.

16

F12267

WASHER

SHIM - Relief Valve (.010)

1шт.

16

H220798

SHIM,.035" Thk

Relief Valve .035" Thk

1шт.

17

F36908

WASHER

- Steel (.670 O.D. x .065)

3шт.

18

H253054

WASHER

- Steel (.670 O.D. x .020)

3шт.

19

H253062

WASHER

- Steel (.670 O.D. x .046)

3шт.

20

H758367

RING

- Retaining, Square

3шт.

21

H758375

PLUG

- Pressure Beyond (Includes O-Ring)

1шт.

22

F37892

PLUG

- (Includes O-Ring)

1шт.

23

205-14

HOLE PLUG BUTTON,3/8"

INSERT - Button

3шт.

24

H646240

KIT

- Seal Repair

1шт.

Выбрано товаров: 27
