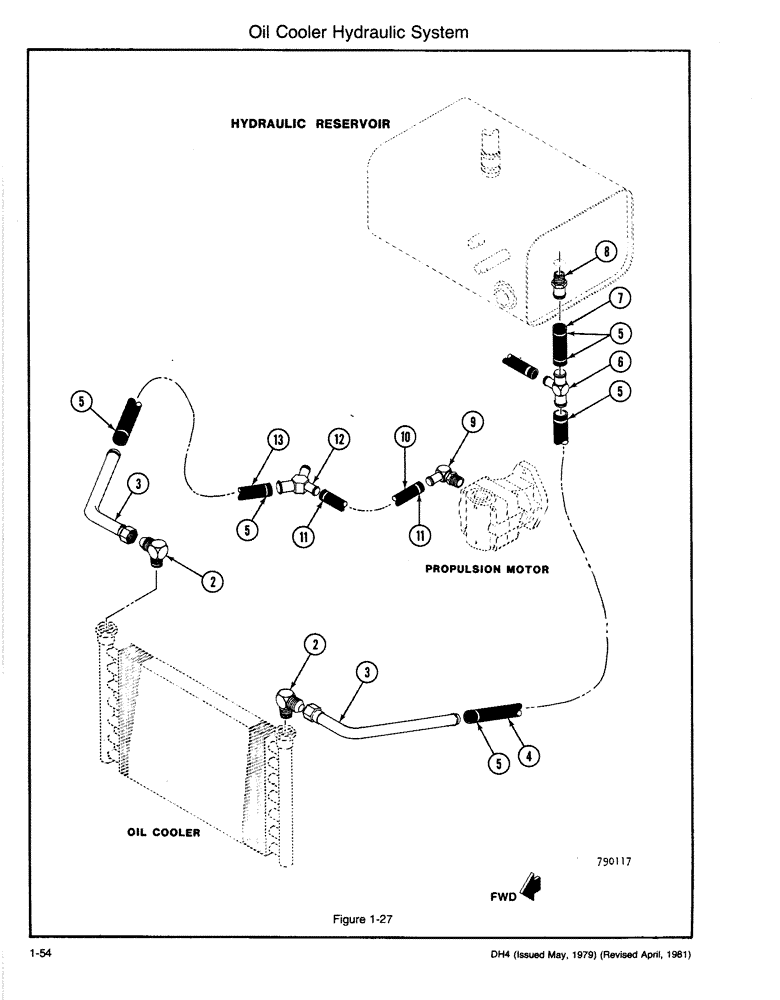

Запчасти Case DH4 (1-54) - OIL COOLER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

2

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree (3/4 NPT x 1 5/16 JIC M)

2шт.

3

H642165

TUBE ASSY.,25.4 mm OD x 200, 90 mm L

TUBE

2шт.

4

H167601

HOSE

(1 x 46)

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (1)

6шт.

6

D55776

TEE

(1 Barb Run x 3/4 Barb Side)

1шт.

7

C19438

HOSE (1 x 4)

1шт.

8

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR (1 MP x 1 Barb)

1шт.

9

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1-1/16 ORB x 3/4 Barb)

1шт.

10

H307777

HOSE ASSY.

HOSE (3/4 x 20)

1шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (3/4)

2шт.

12

H339747

FITTING

- Y (1 x 3/4 x 3/4 Barb)

1шт.

13

L45541

HOSE

1шт.
