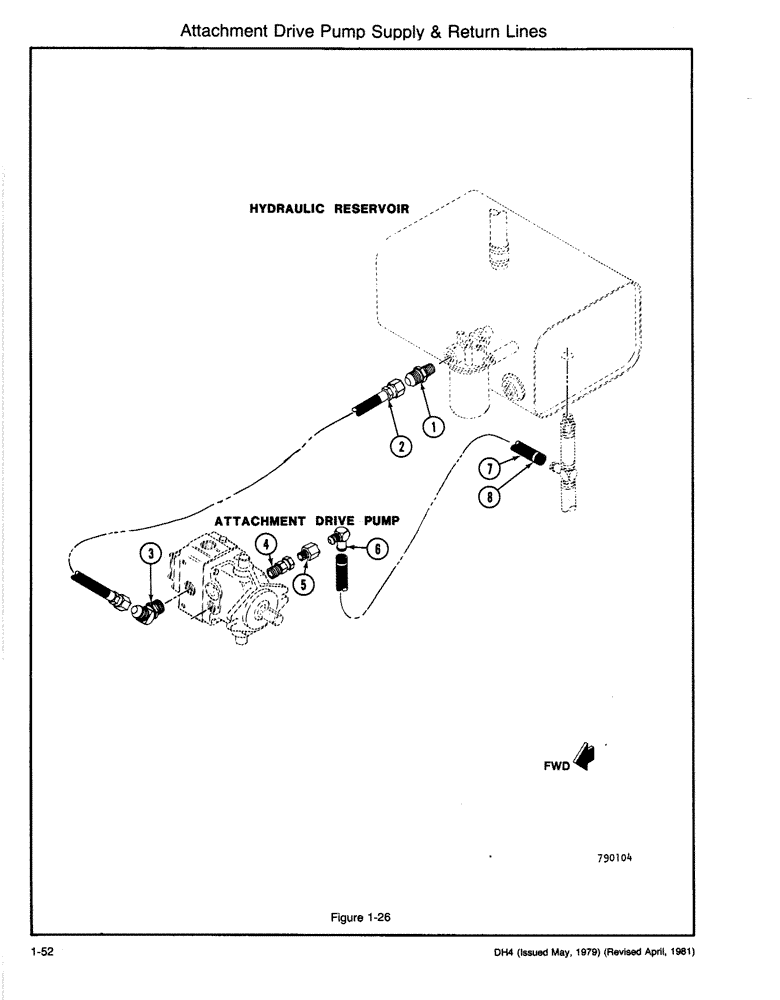

Запчасти Case DH4 (1-52) - ATTACHMENT DRIVE PUMP SUPPLY & RETURN LINES (35) - HYDRAULIC SYSTEMS

1

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., (1 JIC M & 3/4 ORB)

1шт.

2

H285205

HYDRAULIC HOSE,25.40 mm ID x 1397.00 mm, SAE 100R1

(1-5/16 JIC Fe Swv Both Ends) 25.40 mm ID x 1397.00 mm, SAE 100R1

1шт.

3

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree (1-5/16 ORB & 1-5/16 JIC M)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16)

1шт.

4

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

CONNECTOR - (1-1/16 ORB & 3/4 NPT Fe)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (1-1/16)

1шт.

5

H627513

VALVE

- Bypass

1шт.

6

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degree (3/4 MP & 3/4 Hose Barb)

1шт.

7

H383158

HOSE,0.75" ID x 17.72", SAE 30R2

1шт.

8

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.
