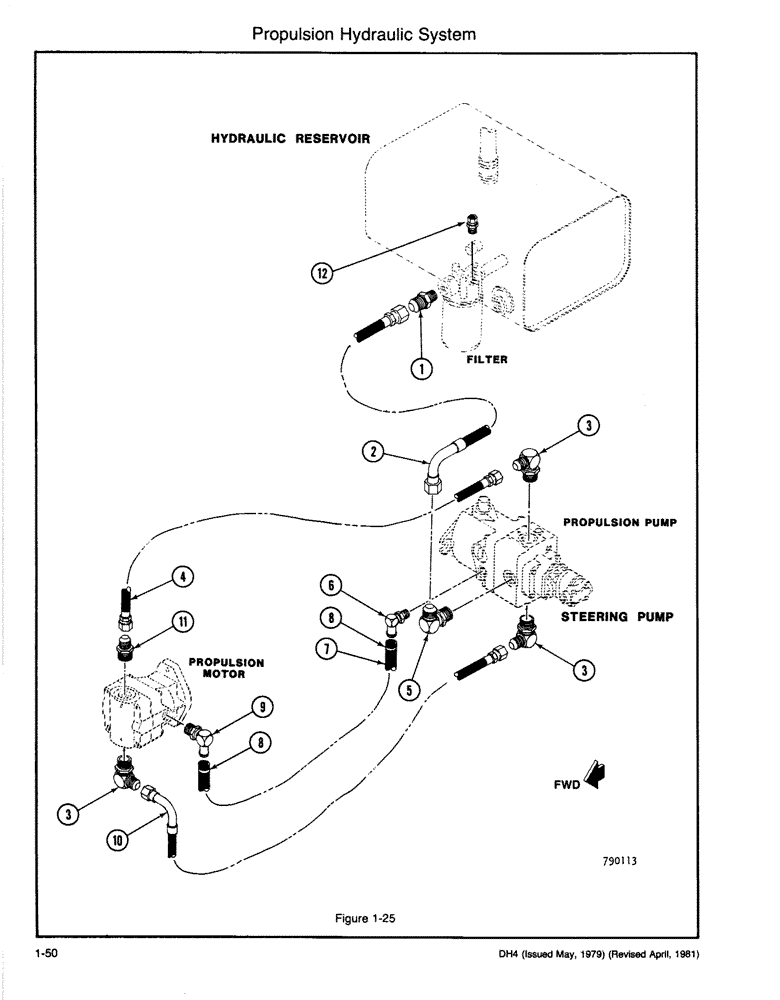

Запчасти Case DH4 (1-50) - PROPULSION HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., (1 JIC M & 3/4 ORB)

1шт.

2

H280677

HOSE

- 1 x 33 (1-5/16 JIC Fe Swv x 1-5/16 JIC Fe Swv)

1шт.

3

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree (1-5/16 ORB & 1-1/16 JIC M)

3шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16 )

1шт.

4

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, Adj (1-5/16 ORB & 1-5/16 JIC M)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16)

1шт.

6

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degree (3/4 ORB & 3/4 Hose Barb)

1шт.

7

H317321

HOSE

- 3/4 x 13

1шт.

8

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

9

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1-1/16 ORB & 3/4 Hose Barb)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (1-1/16)

1шт.

10

H377762

HOSE

- 3/4 x 560 mm (1-1/16 JIC Fe x 1-1/16 JIC Fe Swv)

1шт.

11

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1-5/16 ORB & 1-1/16 JIC M)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-5/16)

1шт.

12

218-5096

ADAPTER

CONNECTOR - (3/4 ORB & 1/8 NPT Fe Swv)

2шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.
