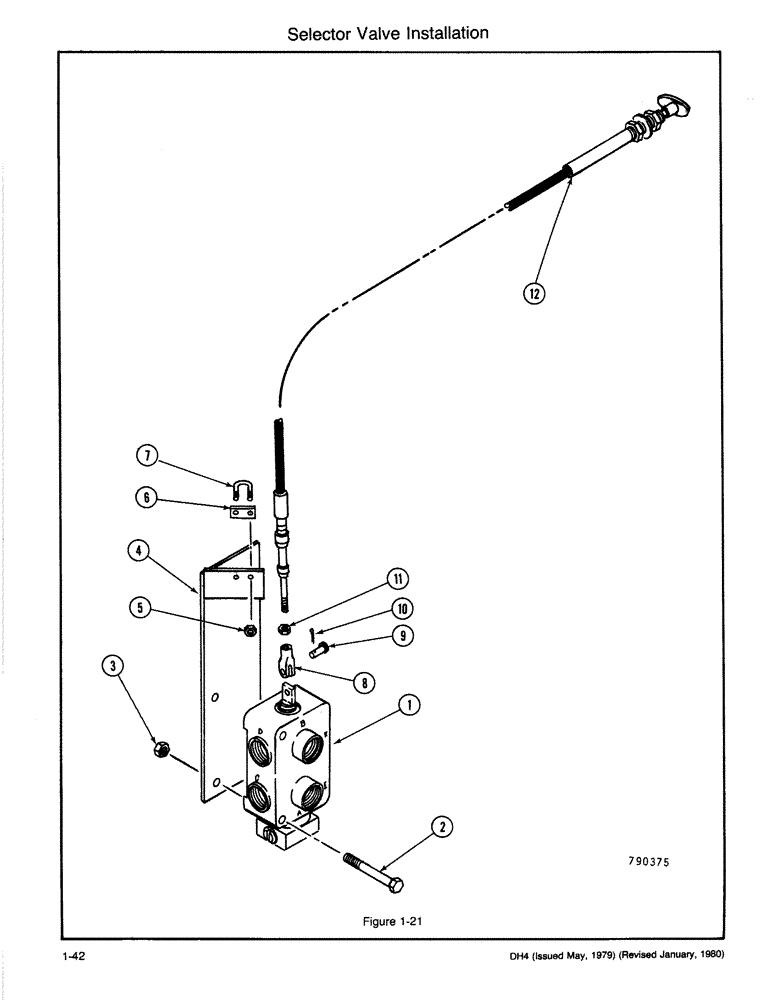

Запчасти Case DH4 (1-42) - SELECTOR VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H646943

LOCK VALVE

SELECTOR VALVE ASSEMBLY (See Figure 1-80), Includes: Refs. 2, 3

1шт.

2

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - Hex (3/8 NC - Lock)

2шт.

4

H647727

PLATE ASSY.

BRACKET - Selector Valve

1шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

6

H373779

LARGE PLATE

SPACER - Cable

1шт.

7

H166421

HARDWARE

U-BOLT

1шт.

8

A18709

CLEVIS

1шт.

9

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - Clevis

1шт.

10

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

11

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

12

H647677

CABLE PULLING GRIP

CABLE - Selector Valve Control

1шт.
