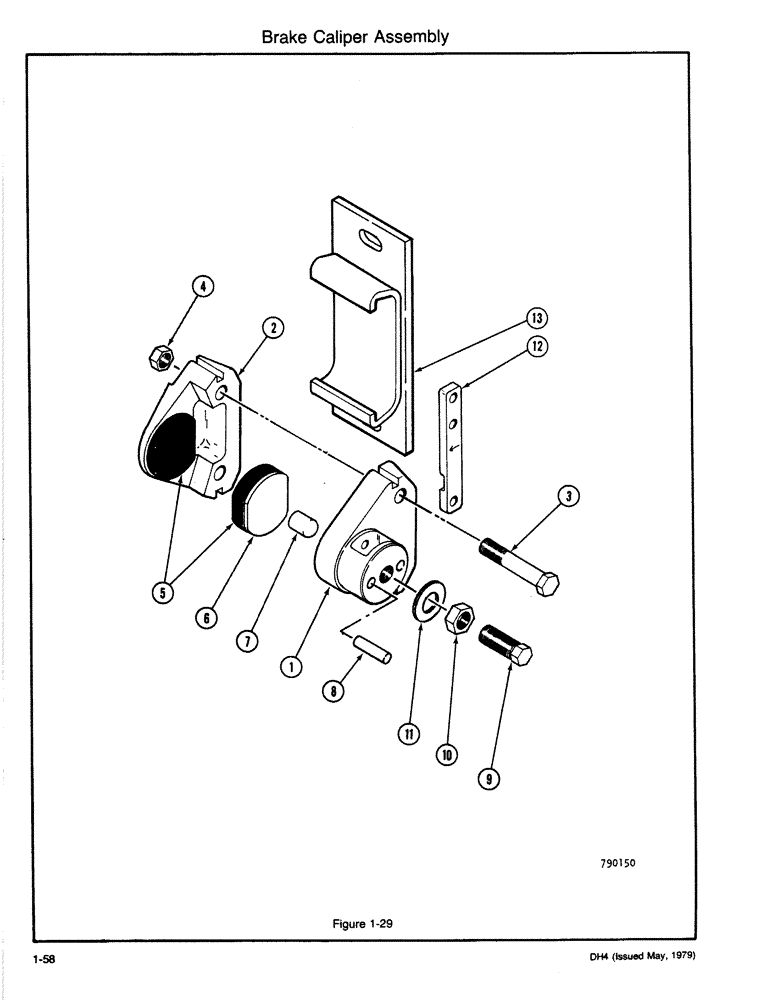

Запчасти Case DH4 (1-58) - BRAKE CALIPER ASSEMBLY (33) - BRAKES & CONTROLS

1

H638841

SET

CALIPER ASSEMBLY - Parking Brake, Includes: Refs. 1, Serial Range: (H378497)-4

1шт.

1

H378497

HOUSING

1шт.

2

H378455

ANVIL

1шт.

3

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

4

131-1306

JAM NUT,Jam, 3/8"-16

NUT - NC Hex C/L (3/8)

2шт.

5

H378463

LINING

- Brake, Includes: Refs. 6-12

2шт.

6

H378471

PLATE ASSY.

PLATE - Backing

1шт.

7

H378489

PIN

- Actuator

1шт.

8

H378505

PULLEY

PIN - Groove

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - Adjuster (replaces H378513)

1шт.

10

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

11

H378539

WASHER

1шт.

12

NSS

NOT SOLD SEPARAT

LEVER (replaces H378521)

1шт.

13

H641506

CALIPER

BRACKET

1шт.
