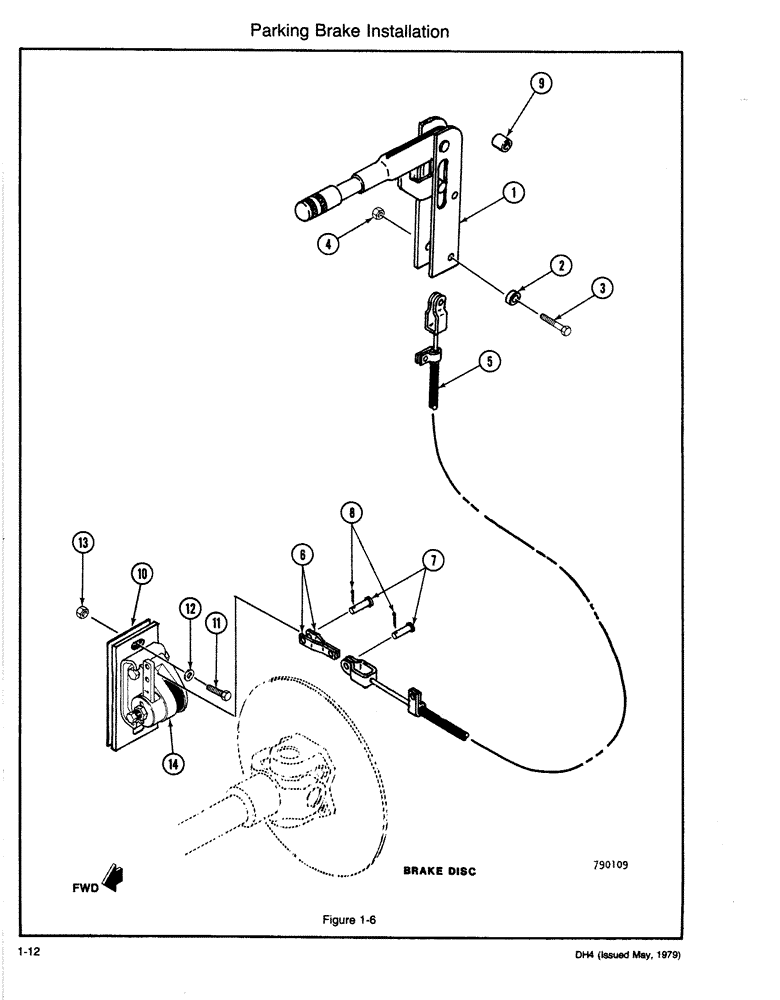

Запчасти Case DH4 (1-12) - PARKING BRAKE INSTALLATION (33) - BRAKES & CONTROLS

1

H506881

HANDLE

BRAKE CONTROL ASSEMBLY, Includes: Refs. 2-4

1шт.

2

H270538

SPACER

- Control

2шт.

3

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

5

H665927

CONTROL BLOCK

CABLE - Brake (replaces H629170)

1шт.

6

H376376

OFFSET LINK

LINK - Brake

2шт.

7

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

2шт.

8

133-320

PIN - Cotter (3/32 x 3/4)

2шт.

9

H270538

SPACER

2шт.

10

H375659

SHIM - Mounting

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

2шт.

14

H638841

SET

CALIPER ASSEMBLY - Brake (See Figure 1-58)

1шт.
