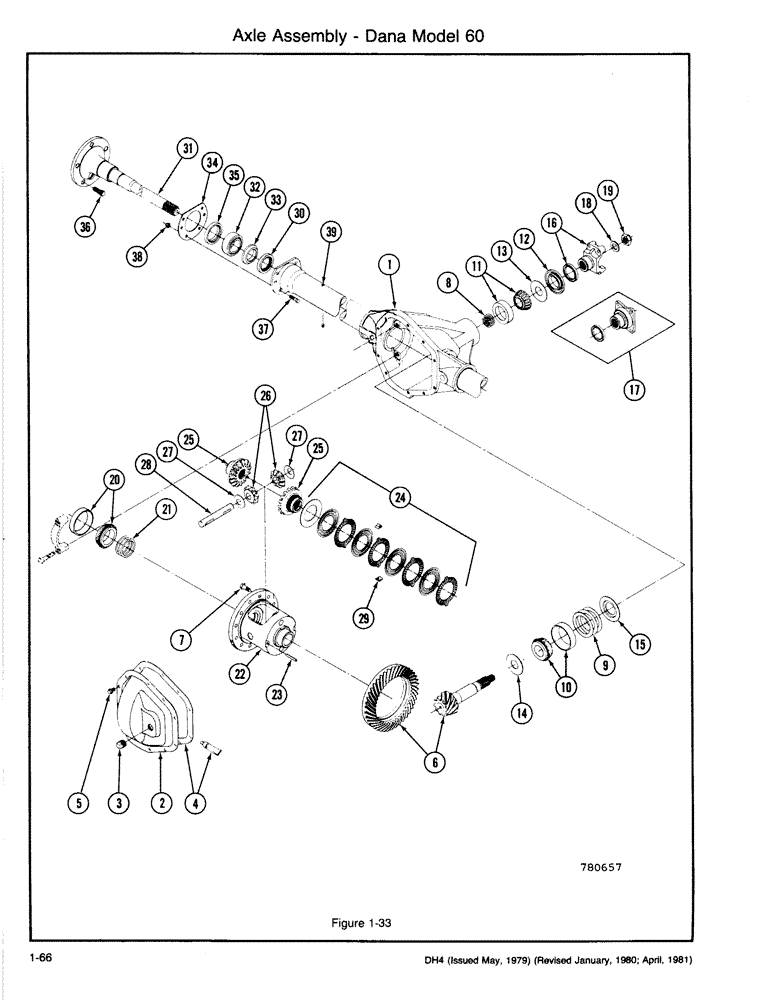

Запчасти Case DH4 (1-66) - AXLE ASSEMBLY - DANA MODEL 60 (23) - FOUR WHEEL DRIVE SYSTEM

H637249

AXLE

ASSEMBLY - Front

1шт.

H637256

AXLE

ASSEMBLY - Rear, Includes: Refs. 1-39

1шт.

1

H393181

HOUSING - Axle

1шт.

Use with cover assembly with a flat sealing surface.

1шт.

H644138

KIT

- Carrier Cover, Includes: Refs. 2-5

1шт.

2

H644146

COVER ASSY

COVER ASSEMBLY - Carrier, Includes: Refs. 3

1шт.

3

221-48

PLUG

1шт.

4

H263095

GASKET

- Cover

1шт.

Use with cover assembly with a flat sealing surface.

1шт.

345-69

SEALANT

- RTV Silicone

1шт.

Use with cover assembly with a rib design sealing surface.

1шт.

5

H227132

FLANGE BOLT

BOLT - Carrier Cover

10шт.

NSS

NOT SOLD SEPARAT

CARRIER ASSEMBLY - Front Axle (replaces H650424)

1шт.

NSS

NOT SOLD SEPARAT

CARRIER ASSEMBLY - Rear Axle (replaces H650432), Includes: Refs. 6-29

1шт.

6

H630376

GEAR

& PINION ASSEMBLY - Hypoid Drive (includes 19)

1шт.

7

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - Drive Gear

12шт.

8

H136234

SHIM,.003" Thk

Pinion Bearing Adjusting .003" Thk

1шт.

H136242

SHIM,.005" Thk

Pinion Bearing Adjusting .005" Thk

1шт.

H136259

SHIM,.010" Thk

Pinion bearing adjusting .010" Thk

1шт.

9

H136192

SHIM,.003" Thk

Drive Pinion Adjusting .003" Thk

1шт.

H136200

SHIM,.005" Thk

Drive Pinion Adjusting .005" Thk

1шт.

H136218

SHIM,.010" Thk

Drive Pinion Adjusting .010" Thk

1шт.

H136226

SHIM,.030" Thk

Drive Pinion Adjusting .030" Thk

1шт.

10

H630426

BEARING

KIT - Inner Pinion Bearing

1шт.

11

H630434

BEARING

KIT - Outer Pinion Bearing

1шт.

12

H758326

OIL SEAL

SEAL - Pinion

1шт.

13

H224535

SHIELD

SLINGER - Pinion Oil Seal (outer)

1шт.

14

H349654

SEAL ASSY.

SLINGER - Pinion Oil Seal (inner)

1шт.

15

H349647

BAFFLE

- Pinion Bearing

1шт.

16

H224519

YOKE

ASSEMBLY - End (front)

1шт.

17

345427C1

SLINGER

YOKE ASSEMBLY - End (rear), replaces H263111

1шт.

18

H224501

WASHER

- Pinion Nut, 7/8 inch

1шт.

19

H224642

NUT

- Pinion

1шт.

20

H630442

BEARING

KIT - Differential Bearing

1шт.

21

H136325

SHIM,.003" Thk

Differential bearing adjusting .003" Thk

1шт.

H136333

SHIM,.005" Thk

Differential bearing adjusting .005" Thk

1шт.

H136341

SHIM,.010" Thk

Differential bearing adjusting .010" Thk

1шт.

H136358

SHIM,.030" Thk

Differential bearing adjusting .030" Thk

1шт.

22

H660076

CASE ASSY.

CASE ASSEMBLY - Differential, Includes: Refs. 23-29

1шт.

23

H263129

LOCK PIN

LOCK - Differential Shaft

1шт.

24

H650622

DISC

STACK - Differential Disc & Plate Assembly

2шт.

25

H393645

PINION

GEAR - Differential

2шт.

26

H349662

PINION

- Differential

2шт.

27

H136374

WASHER

THRUST WASHER - Pinion

2шт.

28

H136366

SHAFT

1шт.

29

H226753

CLIP

- Clutch Retainer

2шт.

H650374

AXLE SHAFT

KIT - Axle Shaft, Includes: Refs. 30-36

2шт.

30

H263087

SEAL

- Oil

1шт.

31

H650382

SHAFT ASSY.

SHAFT ASSEMBLY - Axle, Includes: Refs. 32-36

1шт.

32

H263152

WHEEL BEARING KIT

BEARING ASSEMBLY

1шт.

33

H263160

OIL SEAL

RETAINING RING - Wheel Bearing

1шт.

34

H263137

RETAINER

- Oil Seal

1шт.

35

H263145

SEAL ASSY.

SEAL - Oil

1шт.

36

H171090

WHEEL BOLT

STUD - Wheel

5шт.

37

H263103

BOLT

BOLT

12шт.

38

H197780

LOCK NUT

NUT - Lock

12шт.

39

H393199

VENT

1шт.

H650390

KIT

- Unit Bearing & Seal (includes 30, 32, 33, 34, 35) - per axle

2шт.

H650424

1шт.

H650432

1шт.
