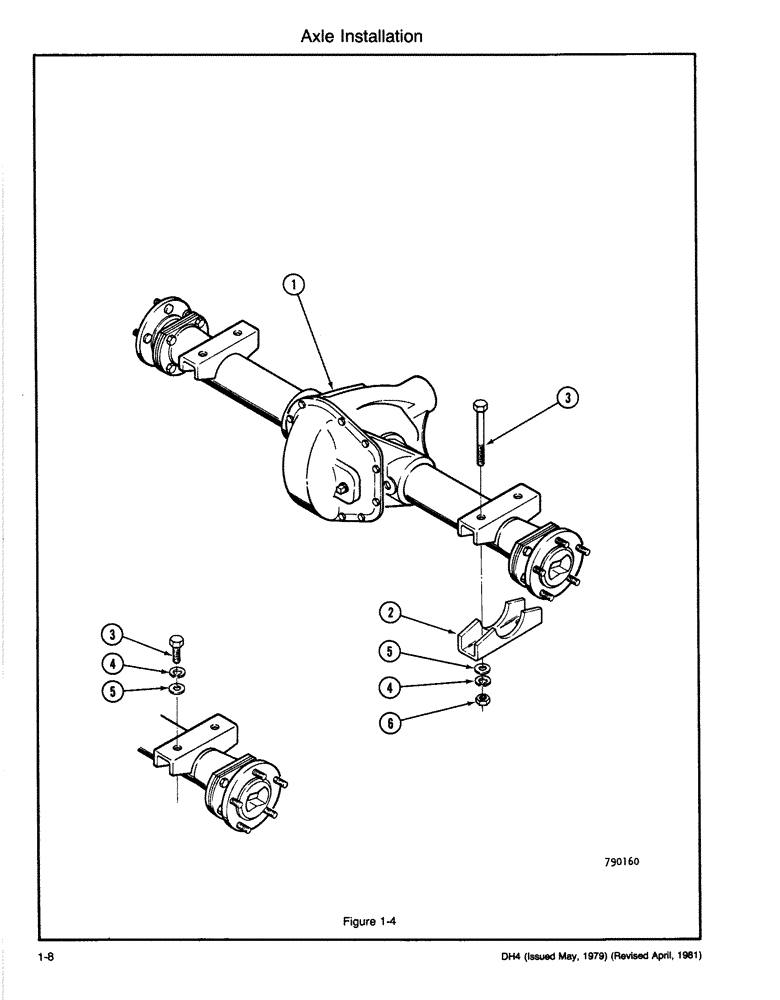

Запчасти Case DH4 (1-08) - AXLE INSTALLATION (23) - FOUR WHEEL DRIVE SYSTEM

1

H637249

AXLE

ASSEMBLY Front (Dana Model 60) (See Figure 1-66)

1шт.

H650689

AXLE

ASSEMBLY - Front (Dana Model 70) (See Figure 1-67A)

1шт.

H637256

AXLE

ASSEMBLY - Rear (Dana Model 60) (See Figure 1-66)

1шт.

H650705

AXLE, REAR

AXLE ASSEMBLY - Rear (Dana Model 70) (See Figure 1-67A)

1шт.

2

H256719

SPRING SEAT

SEAT - Spring, Includes: Refs. 3-6

4шт.

Used with Model 60 Axles

1шт.

3

113-723

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

8шт.

Used with Model 60 Axles

1шт.

114-700

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5, Full Thd

- NF HH (3/4 x 1-1/2)

8шт.

Used with Model 70 Axles

1шт.

4

195-545

WASHER,3/4", SAE

- Lock (3/4)

8шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Flat H.T. (25/32)

8шт.

6

131-1131

LOCK NUT,3/4"-10, GA

NUT - NC HH C/L (3/4)

8шт.

Used with Model 60 Axles

1шт.
