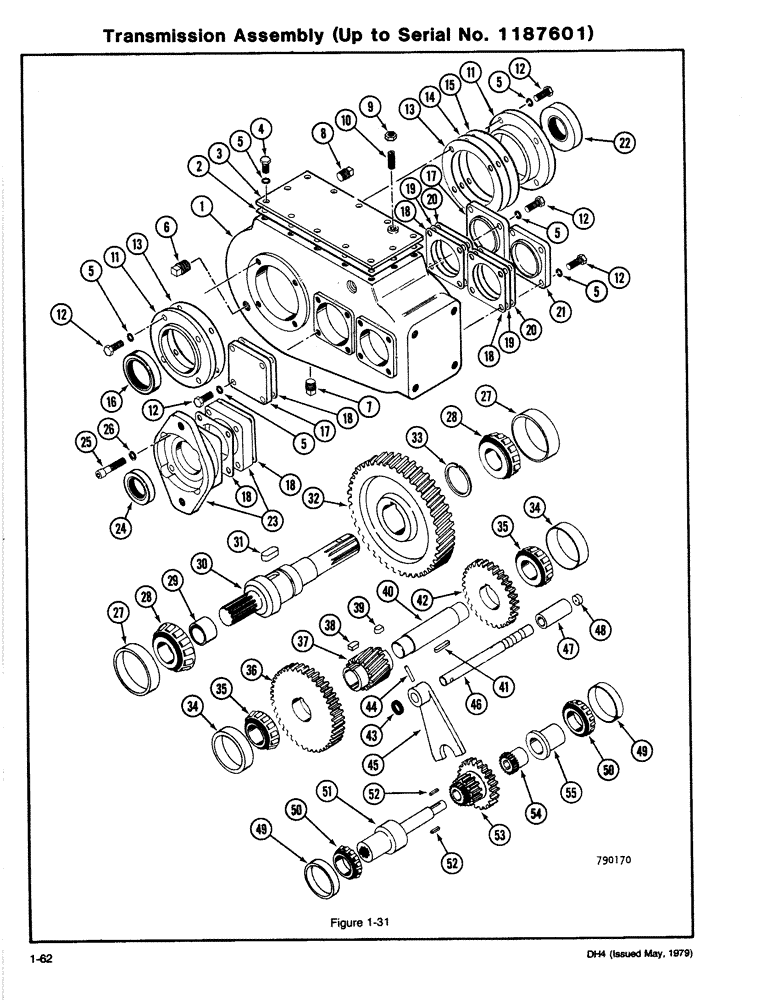

Запчасти Case DH4 (1-62) - TRANSMISSION ASSEMBLY (UP TO SERIAL NO. 1187601) (21) - TRANSMISSION

H637264

TRANSMISSION

ASSEMBLY, Includes: Refs. 1, 2

1шт.

1

H389437

HOUSING

1шт.

2

H362715

GASKET

1шт.

3

H389445

COVER - Lid, Includes: Refs. 4-55

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

12шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

32шт.

6

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - Pipe (1/2)

1шт.

7

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - Pipe (3/8)

1шт.

8

H362723

VENT

PLUG - Breather

1шт.

9

425-1410

JAM NUT,Jam, 5/8"-11, G5

- NC Hex Jam (5/8)

1шт.

10

H389676

PLUNGER - Spring

1шт.

11

H380832

COVER

2шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

20шт.

13

H362681

SHIM,.005" Thk

1шт.

14

H362699

SHIM,.007" Thk

1шт.

15

H362707

BLOCK

SHIM (.020)

1шт.

16

H758177

SEAL

1шт.

17

H389452

COVER

2шт.

18

H362657

SHIM,.005" Thk

1шт.

19

H362665

SHIM,.007" Thk

1шт.

20

H362673

SHIM,.020" Thk

1шт.

21

H389460

COVER

1шт.

22

H758201

SEAL

1шт.

23

H389478

FLANGE ASSY - Pump (flange and spacer nut sold separately)

1шт.

Ref. 23, Spacer, H421883

1шт.

Under Ref. 23 (Flange and Spacer are not sold separately)

1шт.

24

H362731

SEAL

1шт.

25

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - NC Socket Head (3/8 x 1-1/2)

4шт.

26

192-401

LOCK WASHER,3/8"

3/8"

4шт.

27

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - Bearing

2шт.

28

H758128

BEARING

CONE - Bearing

2шт.

29

A142869

ROLLER CAGE BEARING

SLEEVE

1шт.

30

H389619

SHAFT

1шт.

31

H388942

KEY (1/2 Sq x 1-1/4 - Rd End - Hard)

1шт.

32

H389601

GEAR - 56 Tooth

1шт.

33

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

34

A26746

BEARING CUP

CUP - Bearing

2шт.

35

A31229

CONE

- Bearing

2шт.

36

H389494

GEAR

- Intermediate - 55 Tooth

1шт.

37

H389593

GEAR - Shaft - Intermediate - 14 Tooth

1шт.

38

H389650

KEY

1шт.

39

H389668

KEY

1шт.

40

H389684

SHAFT - Intermediate

1шт.

41

H389718

KEY (1/4 x 3/16 x 1-1/4)

1шт.

42

H389585

GEAR

- Intermediate - 42 Tooth

1шт.

43

C13266

SEAL

1шт.

44

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1-1/4", Slotted

1шт.

45

H374835

FORK

YOKE

1шт.

46

H389643

ROD - Shifter

1шт.

47

H389692

BUSHING

1шт.

48

H389775

PLUG

1шт.

49

G57451

BEARING, CUP

CUP - Bearing

2шт.

50

G57452

ROLLER BEARING

CONE - Bearing

2шт.

51

H389627

SHAFT

1шт.

52

F65828

KEY

(1/8 Sq x 3/4 - Sq End)

2шт.

53

H389486

GEAR - Cluster - 16 Tooth, 29 Tooth

1шт.

54

H389635

GEAR - Clutch Sleeve

1шт.

55

H389700

SLEEVE - Bearing

1шт.
