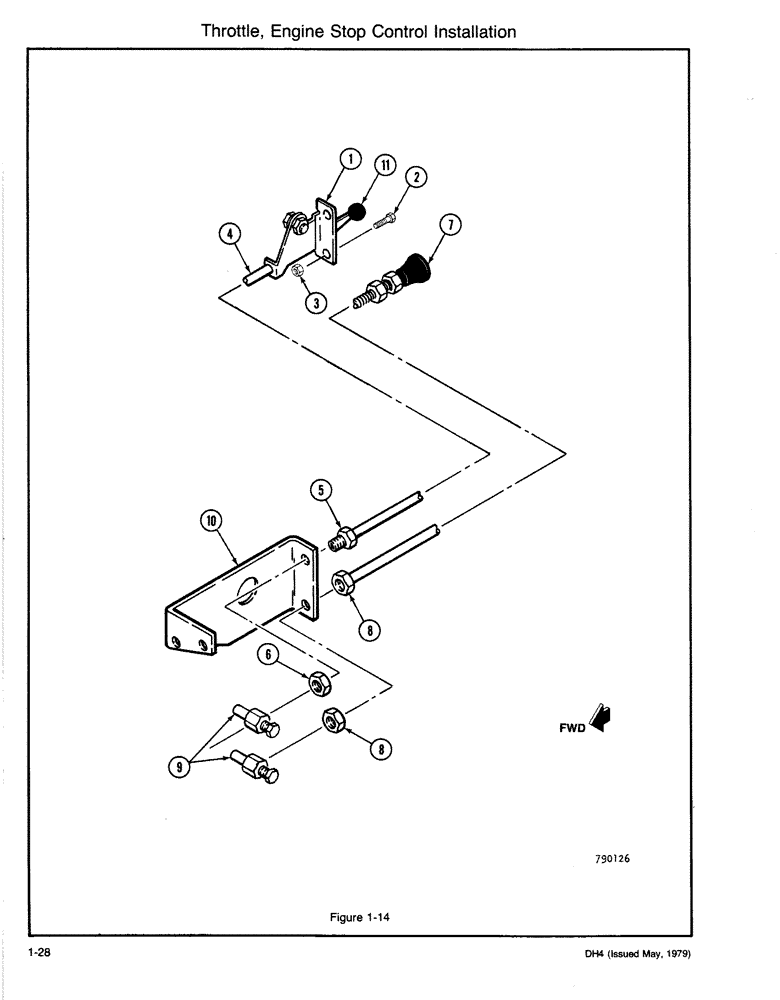

Запчасти Case DH4 (1-28) - THROTTLE, ENGINE STOP CONTROL INSTALLATION (10) - ENGINE

1

H581736

CONTROL BLOCK

CONTROL - Throttle, Includes: Refs. 2, 3

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

3

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

4

H410019

ELECTRICAL WIRE

WIRE - Throttle Control, Includes: Refs. 5, 6

1шт.

5

H99457

PIPE CLAMP

NUT - Conduit

1шт.

6

129-123

NUT,3/8"-24, G5

1шт.

7

H374934

CABLE

CONTROL - Engine Stop, Includes: Ref. 8

1шт.

8

H243782

NUT

- Conduit

2шт.

9

H43034

JOINT TURNING

SWIVEL - Throttle & Engine Stop

2шт.

10

H383083

BRACKET - Throttle & Engine Stop

1шт.

11

H244434

KNOB

- Throttle Control

1шт.
