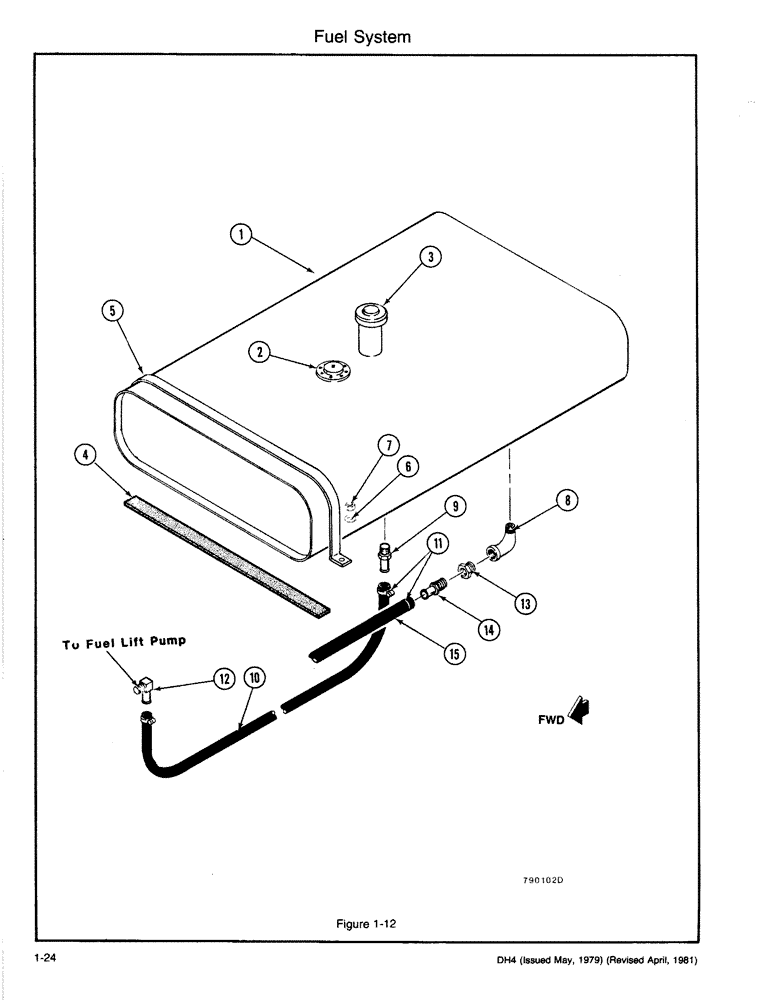

Запчасти Case DH4 (1-24) - FUEL SYSTEM (10) - ENGINE

1

H650614

TANK - Fuel, Includes: Refs. 2, 3

1шт.

2

H642900

GAUGE ASSY.

GAUGE - Fuel Level

1шт.

3

H151274

CYLINDER END CAP

CAP - Fuel Tank

1шт.

4

H293944

DOOR

DORTITE

2шт.

5

H373449

STRAP

- Fuel Tank, Includes: Refs. 6, 7

2шт.

6

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

4шт.

8

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- 90 degree

1шт.

9

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

CONNECTOR

1шт.

10

H318808

FUEL HOSE,0.25" ID x 72.00"

- Includes Ref. 11 0.25" ID x 72.00"

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

12

217-369

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/2" - 20 Male ORB

ELBOW - 90 degree

1шт.

13

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- Pipe (3/8 to 1/4)

1шт.

14

217-126

FITTING,3/16" Hose Barb x 1/4" Male NPTF

CONNECTOR - (1/4 MP x 3/16 Barb)

1шт.

15

H404038

FUEL HOSE,4.80 mm ID x 2159.00 mm, SAE 30R3

4.80 mm ID x 2159.00 mm, SAE 30R3

1шт.
