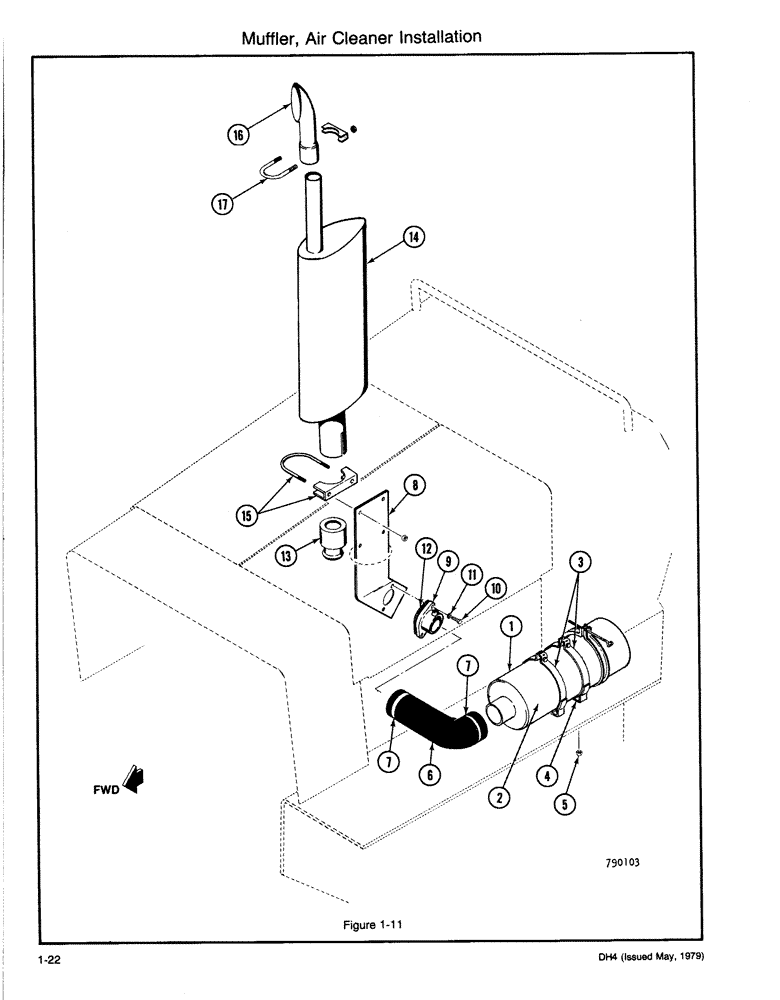

Запчасти Case DH4 (1-22) - MUFFLER, AIR CLEANER INSTALLATION (10) - ENGINE

1

H152553

AIR CLEANER

Includes: Ref. 2

1шт.

2

D48198

AIR CLEANER

ELEMENT - Air Cleaner

1шт.

3

R41654

COLLAR CLAMP

BAND - Air Cleaner Mounting, Includes: Refs. 4, 5

2шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- NC HH (3/16 x 3/4)

4шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (3/16)

4шт.

6

H291633

INTAKE AIR HOSE,2.00" ID x 6.50", SAE 20R4 CLASS R

HOSE - Air Cleaner, Includes: Ref. 7

1шт.

7

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

8

H377291

BRACKET - Muffler Support

1шт.

9

H628081

AIR INTAKE TUBE,1.68" L

TUBE - Intake, Includes: Refs. 10, 11

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

H353334

GASKET

2шт.

13

H393512

ADAPTER

- Muffler

1шт.

14

A39561

MUFFLER

Includes: Ref. 15

1шт.

15

A27115

CLAMP

- Muffler

2шт.

16

A39571

PIPE, EXHAUST SYSTEM

PIPE - Extension, Includes: Refs. 17

1шт.

17

G45410

CLAMP

- Muffler

1шт.

Clamp for end cap is D48199.

1шт.

Clamp to adapter for exhaust manifold is E36314.

1шт.
