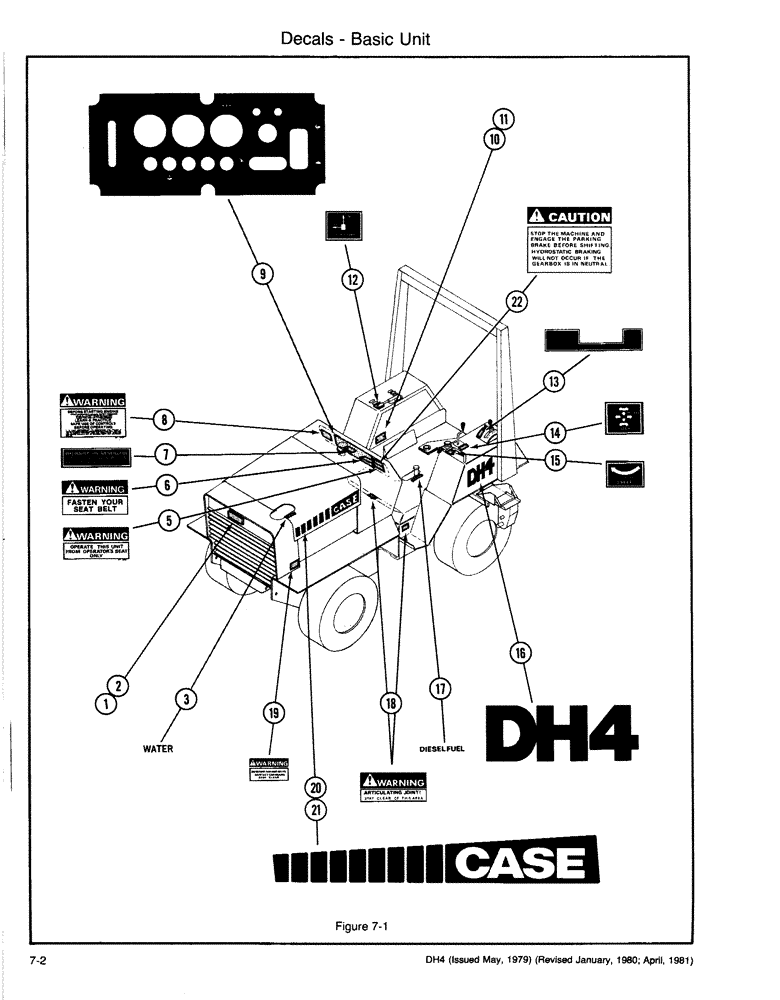

Запчасти Case DH4 (7-02) - DECALS- BASIC UNIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

321-4739

EMBLEM

MEDALLION - Case, Includes: Ref. 2

1шт.

2

H131-431

PALNUT

2шт.

3

321-719

DECAL

- Water

3шт.

5

321-3905

DECAL

- Warning - Operate from Operator's Seat

1шт.

6

321-3217

DECAL

- Warning - Fasten Seat Belt

1шт.

7

H277723

DECAL

- Hydraulic Oil Type

1шт.

8

321-3705

DECAL

- Warning - Before Start Engine

1шт.

9

321-5090

DECAL

- Intrument Panel

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - Serial, Includes: Ref. 11

1шт.

11

168-73

SCREW,Type U, Rnd Hd, #10 x 3/8"

- Drive

2шт.

12

321-5287

DECAL

- Park Brake - ON/OFF

1шт.

13

321-5091

DECAL

- Trench & Plow Control

1шт.

14

H266627

DECAL

- Propulsion

1шт.

15

321-2989

DECAL

- Creep

1шт.

Ref. 15A H289694 Decal Creep (Mono Stick Units Only)

1шт.

16

321-5089

DECAL

- DH4

2шт.

17

321-230

DECAL

- Diesel Fuel

2шт.

18

321-3218

DECAL

- Warning - Articulating Joint

3шт.

19

321-3596

DECAL

- Warning - Rotating Fan & Belts

2шт.

20

321-5949

DECAL

- Case - Left Hand (Shown)

1шт.

21

321-5950

DECAL

- Case - Right Hand (Not Illustrated)

1шт.

22

321-5501

DECAL

- Caution - Engage Parking Brake Before Shifting

1шт.

23

321-5639

DECAL

- Selector Valve (Plow/Trencher Units Only) (Not Shown)

1шт.
