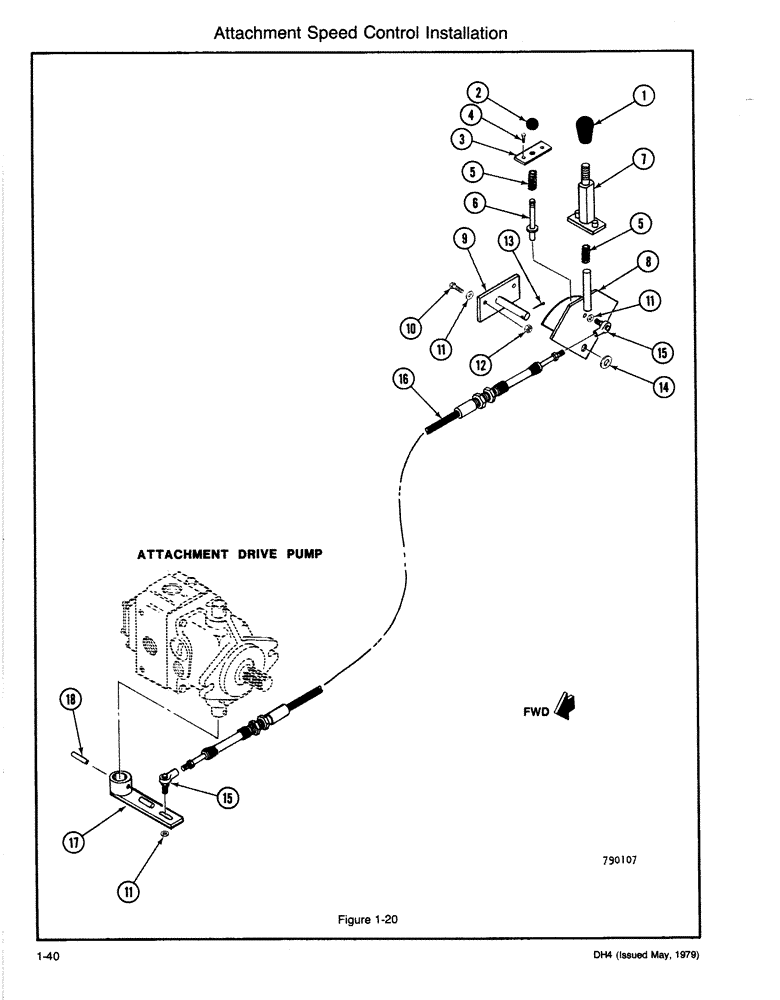

Запчасти Case DH4 (1-40) - ATTACHMENT SPEED CONTROL INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H182113

KNOB

1шт.

2

H249839

KNOB

1шт.

3

H378901

PLATE

- Spring Retainer, Includes: Ref. 4

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

5

A33044

SPRING

2шт.

6

H642892

ROD

- Plunger

1шт.

7

H641043

HANDLE

- Lock

1шт.

8

H641035

HANDLE

1шт.

9

H641027

MOUNTING PARTS

PLATE - Lever Mounting

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

11

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

2шт.

13

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

14

195-533

WASHER,1/2", SAE

- Flat (1/2)

1шт.

15

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - Ball

2шт.

16

H603027

CABLE PULLING GRIP

CABLE - Control

1шт.

17

H640664

ARM ASSY.

ARM - Pump Control

1шт.

18

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.
