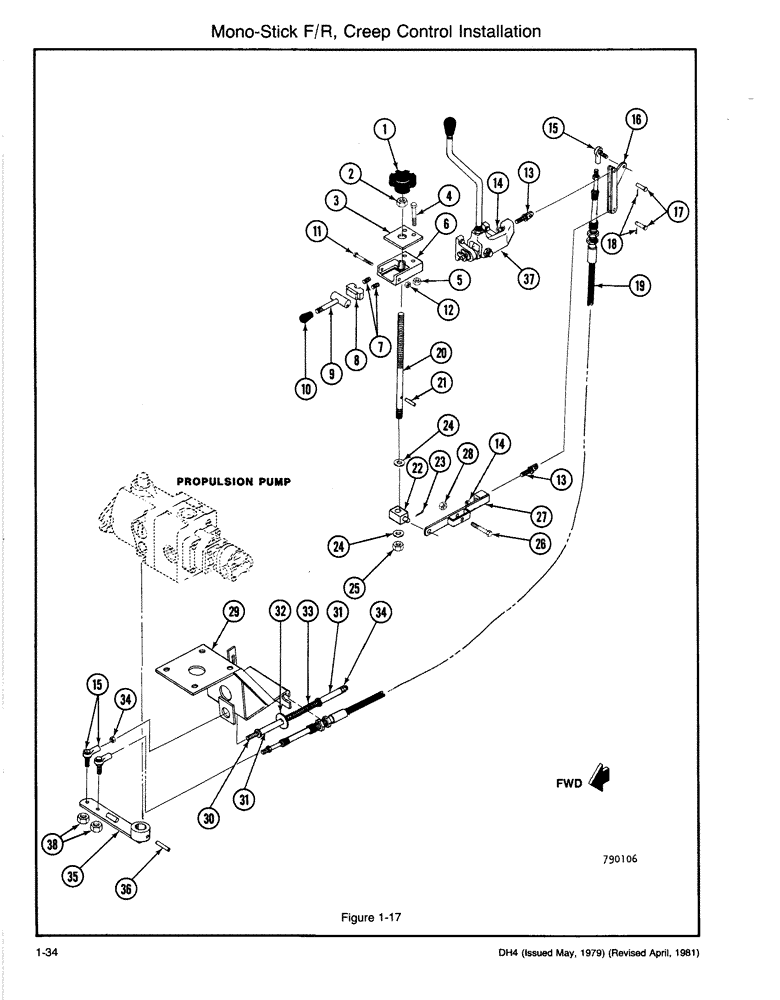

Запчасти Case DH4 (1-34) - NON-STICK F/R, CREEP CONTROL INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
H239004
KNOB
1шт.
2
129-145
JAM NUT,Jam, 1/2"-13, G5
1шт.
3
H233767
COVER ASSY
PLATE - Cover
1шт.
4
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
6
H608885
CONTROL BLOCK
BASE - Control
1шт.
7
H253864
VALVE SPRING
SPRING
2шт.
8
H608877
BLOCK
- Half
1шт.
9
H577783
CAM
1шт.
10
A14051
GRIP
KNOB
1шт.
11
113-46
BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5
- NC HH (1/4 x 2 3/4)
1шт.
12
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
1шт.
13
H217109
BOLT
BOLT - Eye
2шт.
14
113-382
NUT - NF Hex C/L (5/16)
2шт.
15
H289652
BALL JOINT,5/16" - 24 x 1-3/8" L
JOINT - Ball
3шт.
16
H587352
CONTROL
- Cable
1шт.
17
H169318
CLEVIS COUPLING,6.35mm OD x 22.62mm L
PIN - Clevis (1/4 x 51/64)
2шт.
18
132-329
COTTER PIN,1/16" x 3/4"
1/16" x 3/4"
2шт.
19
H590166
CABLE
- Propulsion
1шт.
20
H255158
CONTROL BLOCK
SHAFT
1шт.
21
138-96
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
22
H237701
BLOCK
- Control
1шт.
23
132-334
COTTER PIN,1/8" x 3/4"
PIN, SPLIT (COTTER), 1/8" x 3/4"
1шт.
24
195-533
WASHER,1/2", SAE
- Flat (1/2)
2шт.
25
131-1182
LOCK NUT,1/2"-13, GA
NUT - Hex (1/2 NC - Lock)
1шт.
26
113-110
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Hex, 5/16"-18 x 2 1/4", G5
1шт.
27
H588798
LINK
1шт.
29
H640631
BRACKET - Cable Mounting
1шт.
Up to Serial Number 1187513
1шт.
29
H651364
BRACKET
- Cable Mounting
1шт.
Serial Number 1187513 and up
1шт.
30
H640763
ROD -, Serial Range: Return-Neutral
1шт.
31
H373241
SEAT - Spring, Includes: Ref. 32
2шт.
32
H87452
SPACER
WASHER - Flat (replaces 195-106)
1шт.
33
H390757
SPRING
1шт.
34
86637933
JAM NUT,5/16" - 24, Gr 5
3шт.
35
H640672
ARM/LIFTING DEVICE
ARM - Pump Control
1шт.
36
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
1шт.
37
MONO-STICK CONTROL (See figure 1-33)
1шт.
