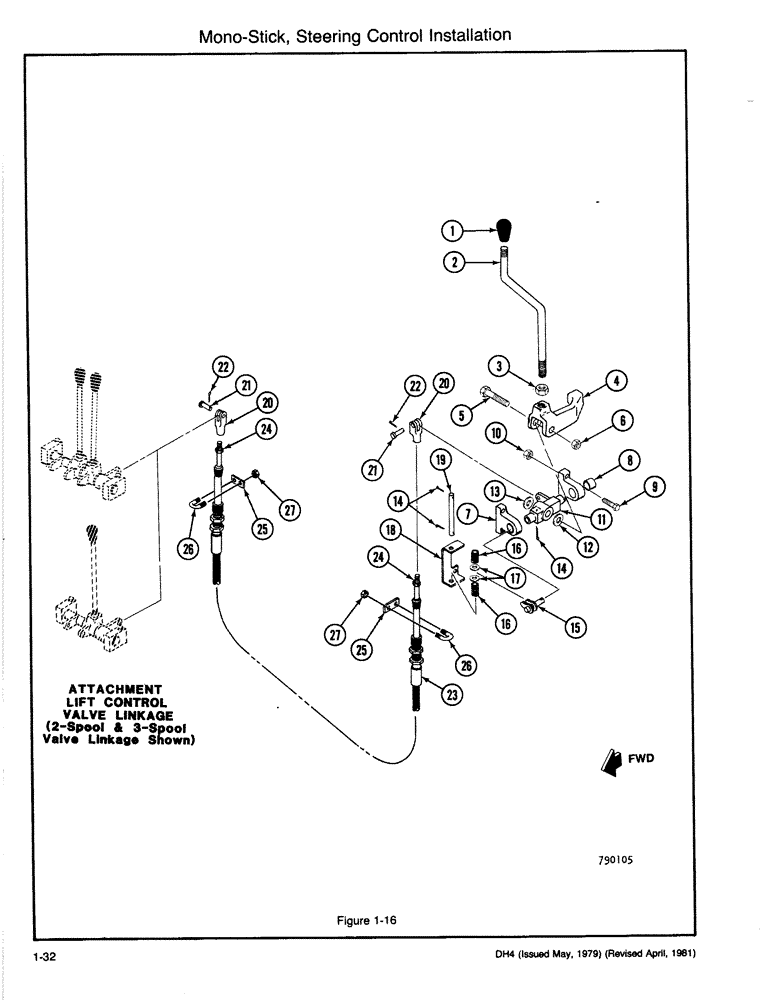

Запчасти Case DH4 (1-32) - MONO-STICK, STEERING CONTROL INTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H182113

KNOB

1шт.

2

H293084

HANDLE

- Steering control

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H181982

CASTING

- Forward & Reverse (replaces H181892)

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- NC HH (1/2 x 2 1/2)

1шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

1шт.

7

H558411

BEARING

BUSHING - Shaft Mounting, Includes: Refs. 8-10

2шт.

8

H151894

BUSHING

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

4шт.

11

H181974

SHAFT

- Control

1шт.

12

H182097

WASHER

- Friction

1шт.

13

H256305

WASHER

- Friction

1шт.

14

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

3шт.

15

H560482

LEVER

1шт.

16

H196717

VALVE SPRING

SPRING

2шт.

17

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

18

H196691

BRACKET

1шт.

19

H196709

GUIDE

PIN - Guide

1шт.

20

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS

2шт.

21

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - Clevis (1/4 x 51/64)

2шт.

22

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

23

H372763

CABLE PULLING GRIP

CABLE - Valve Control

1шт.

24

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

25

H373779

LARGE PLATE

SPACER - Cable

2шт.

26

H166421

HARDWARE

U-BOLT

2шт.

27

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.
