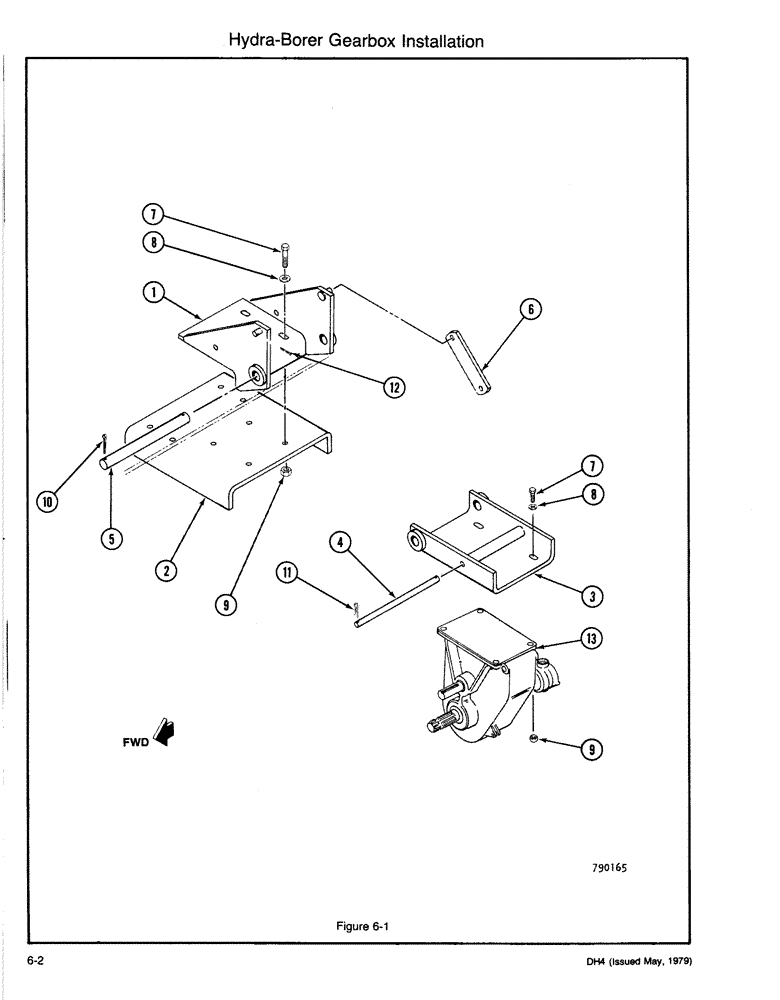

Запчасти Case DH4 (6-02) - HYDRA-BORER GEARBOX INSTALLATION (89) - TOOLS

1

H553370

BRACKET

- Mounting

1шт.

2

H383059

BRACKET

- Mounting

1шт.

3

H553388

CHANNEL

- Mounting

1шт.

4

H175414

PIN

- Lock

1шт.

5

H175448

SHAFT

- Pivot

1шт.

6

H175430

LINK

2шт.

7

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

8

195-533

WASHER,1/2", SAE

- Flat (1/2)

12шт.

9

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/2 NC - Lock)

12шт.

10

87041

COTTER PIN,1/4" x 1 3/4"

PIN - Cotter (1/4 x 1-3/4)

2шт.

11

A70250

PIN

- Hair

2шт.

12

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

13

H511105

GEARBOX ASSY

GEARBOX ASSEMBLY - Hydra-Borer (See Figure 6-10)

1шт.
