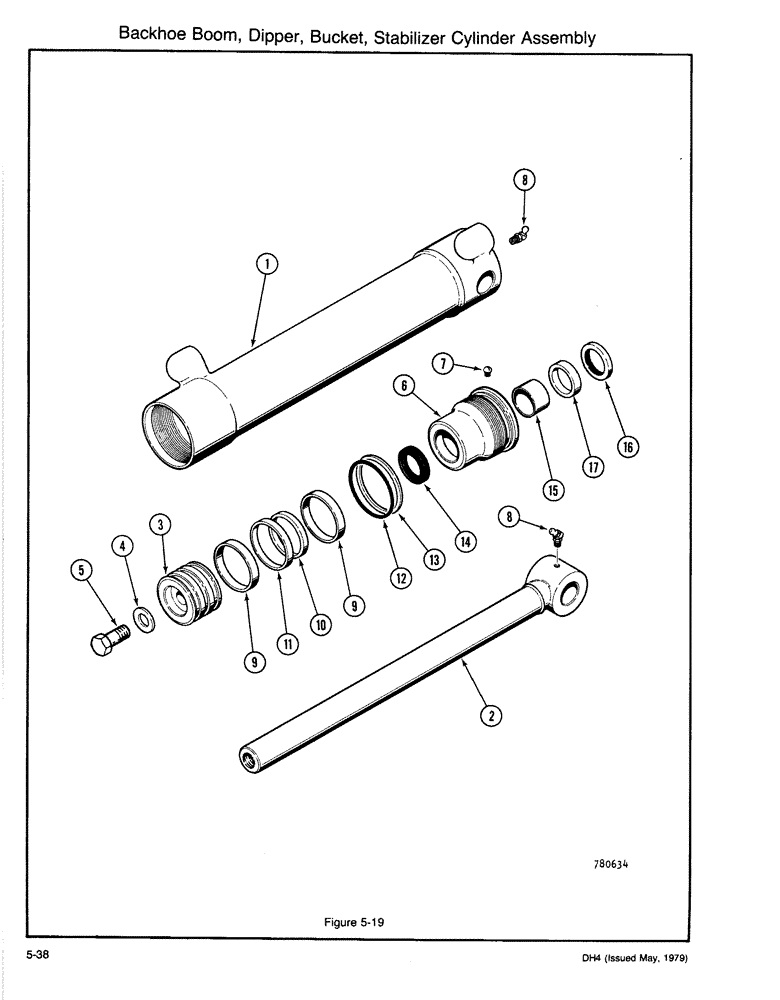

Запчасти Case DH4 (5-38) - BACKHOE BOOM, DIPPER, BUCKET, STABILIZER CYLINDER ASSEMBLY (89) - TOOLS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - Boom, Dipper (D-100), Bucket, Stabilizer, Includes: Refs. 1-17

5шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

BARREL

1шт.

2

G101357

ROD

- Piston

1шт.

3

G100441

PISTON

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Special, Includes: Ref. 5

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G35218

GLAND

Includes: Ref. 7

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC Self Tapping (#8 x 1/4)

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease

2шт.

G102404

SEAL

KIT - Seal Repair, Includes: Refs. 9-16

1шт.

9

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - Wear

2шт.

Included With Ref. #3

1шт.

10

G102228

SEAL - Piston

1шт.

Included With Ref. #3

1шт.

11

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - Piston

1шт.

Included With Ref. #3

1шт.

12

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Included With Ref. #6

1шт.

13

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

WASHER - Backup

1шт.

Included With Ref. #6

1шт.

14

D36969

CUP

SEAL - Rod

1шт.

Included With Ref. #6

1шт.

15

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Rod

1шт.

Included With Ref. #6

1шт.

16

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - Rod

1шт.

Included With Ref. #6

1шт.

17

NSS

NOT SOLD SEPARAT

RING steel

1шт.

Included With Ref. #6

1шт.

G100931

CYLINDER

ASSEMBLY - Dipper (D-100XR), Includes: Refs. 1-17

1шт.

1

G100932

TUBE

BARREL

1шт.

2

G34179

ROD

- Piston

1шт.

3

G35263

PISTON

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Special, Includes: Ref. 5

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G35218

GLAND

Includes: Ref. 7

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC Self Tapping (#8 x 1/4)

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease

2шт.

G105502

SEAL

KIT - Seal Repair (replaces G34656), Includes: Refs. 9-16

1шт.

9

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - Wear

1шт.

Included With Ref. #3

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

(replaces G102228)

1шт.

Included With Ref. #3

1шт.

11

G32034

RING

(replaces G100444)

1шт.

Included With Ref. #3

1шт.

12

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Included With Ref. #6

1шт.

13

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

WASHER - Backup

1шт.

Included With Ref. #6

1шт.

14

D36969

CUP

SEAL - Rod

1шт.

Included With Ref. #6

1шт.

15

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Rod

1шт.

Included With Ref. #6

1шт.

16

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - Rod

1шт.

Included With Ref. #6

1шт.

17

G104224

SEAL

buffer

1шт.
