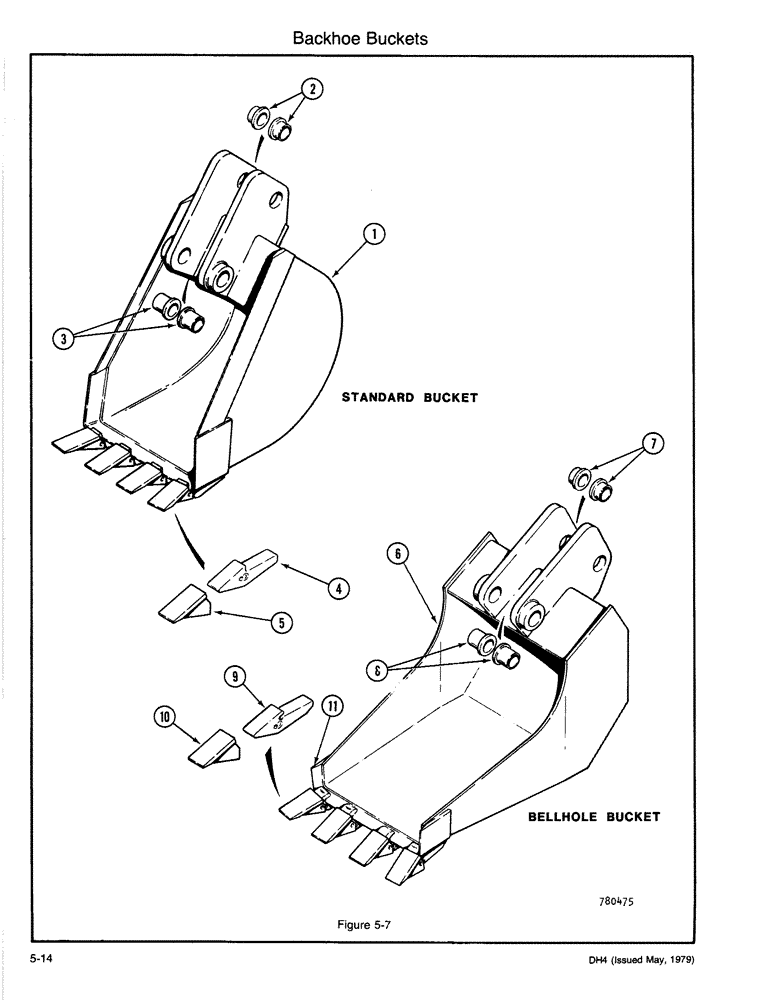

Запчасти Case DH4 (5-14) - BACKHOE BUCKETS, STANDARD BUCKETS, BELLHOLE BUCKETS (89) - TOOLS

1

BUCKET ASSEMBLY - 12", standard buckets, Includes: Refs. 2-5

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H51684

BUSHING - Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

1

*

BUCKET ASSEMBLY - 16", standard buckets, Includes: Refs. 2-5

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

1

*

BUCKET ASSEMBLY - 20", standard buckets, Includes: Refs. 2-5

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

1

*

BUCKET ASSEMBLY - 24", standard buckets, Includes: Refs. 2-5

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

5шт.

5

T41166

TOOTH

POINT - Tooth

5шт.

1

*

BUCKET ASSEMBLY - 36", standard buckets, Includes: Refs. 2-5

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

7шт.

5

T41166

TOOTH

POINT - Tooth

7шт.

6

*

BUCKET ASSEMBLY - 12", bellhole buckets, Includes: Refs. 7-11

1шт.

Machinery Item - See Equipment Price List

1шт.

7

H50823

BUSHING

- Cylinder Pin, bellhole buckets

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Cylinder Hinge, bellhole buckets

2шт.

9

H61283

TOOTH

SHANK - Tooth, bellhole buckets

4шт.

10

T41166

TOOTH

POINT - Tooth, bellhole buckets

4шт.

11

H61424

HALF BLADE

BLADE - Cutting, bellhole buckets

1шт.

6

*

BUCKET ASSEMBLY - 18", bellhole buckets, Includes: Refs. 7-11

1шт.

Machinery Item - See Equipment Price List

1шт.

7

H50823

BUSHING

- Cylinder Pin, belhole buckets

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Cylinder Hinge, bellhole buckets

2шт.

9

H61283

TOOTH

SHANK - Tooth, bellhole buckets

4шт.

10

T41166

TOOTH

POINT - Tooth, bellhole buckets

4шт.

11

H61424

HALF BLADE

BLADE - Cutting, bellhole buckets

2шт.

6

*

BUCKET ASSEMBLY - 22", bellhole buckets, Includes: Refs. 7-11

1шт.

Machinery Item - See Equipment Price List

1шт.

7

H50823

BUSHING

- Cylinder Pin, bellhole buckets

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Cylinder Hinge, bellhole buckets

2шт.

9

H61283

TOOTH

SHANK - Tooth, bellhole buckets

5шт.

10

T41166

TOOTH

POINT - Tooth, bellhole buckets

5шт.

11

H61424

HALF BLADE

BLADE - Cutting, bellhole buckets

1шт.

6

*

BUCKET ASSEMBLY - 36", bellhole buckets, Includes: Refs. 7-11

1шт.

Machinery Item - See Equipment Price List

1шт.

7

H50823

BUSHING

- Cylinder Pin, bellhole buckets

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Cylinder Hinge, bellhole buckets

2шт.

9

H61283

TOOTH

SHANK - Tooth, bellhole buckets

7шт.

10

T41166

TOOTH

POINT - Tooth, bellhole buckets

7шт.

11

H61424

HALF BLADE

BLADE - Cutting, bellhole buckets

1шт.
