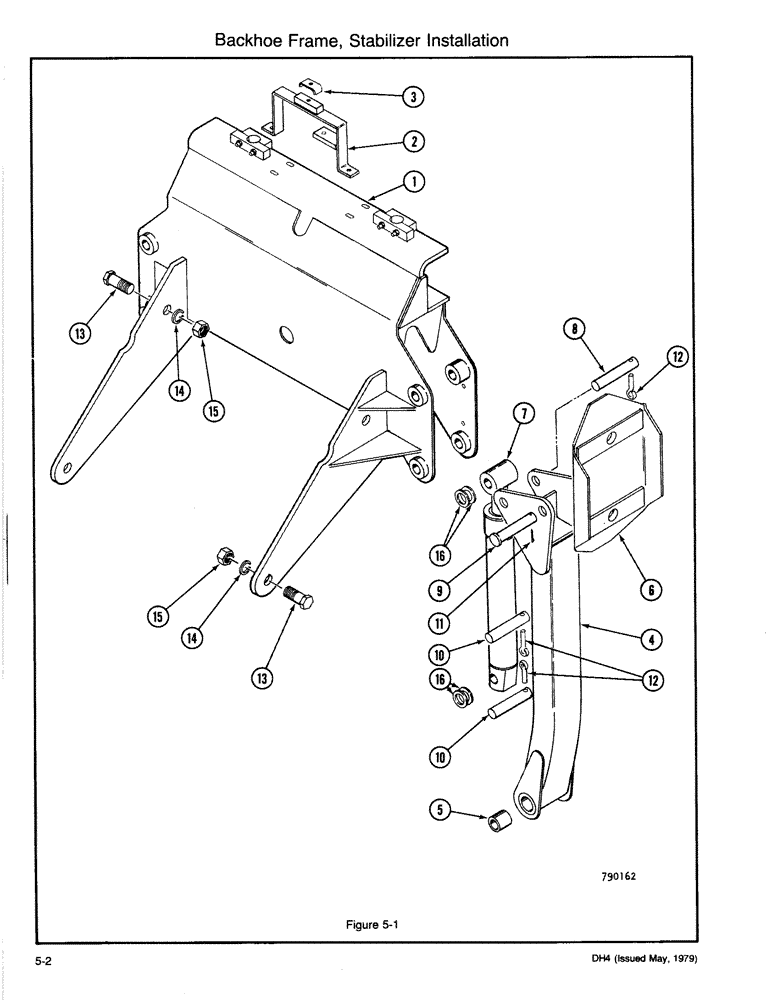

Запчасти Case DH4 (5-02) - BACKHOE FRAME, STABILIZER INSTALLATION (89) - TOOLS

1

FRAME - Main (See figure 5-5)

1шт.

2

H646703

BRACKET

- Tube Mounting

1шт.

Front Mounted Backhoe Only.

1шт.

3

H45468

CLAMP

- Tube

5шт.

Front Mounted Backhoe Only.

1шт.

4

H642975

STABILIZER

ARM - Stabilizer, Includes: Ref. 5

2шт.

5

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

- Arm

2шт.

6

H533646

LARGE PLATE

PAD - Stabilizer

2шт.

6a

H371203

PAD

street (steel)

1шт.

7

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

STABILIZER CYLINDER ASSEMBLY - (See Figure 5-38)

2шт.

8

H109801

AXLE PIN

PIN -, Serial Range: Cylinder-Stabilizer

2шт.

9

H79285

PIN

- Stabilizer To Pad

2шт.

10

H382234

PIN

- Cylinder and Stabilizer Mounting

4шт.

11

B88476

PIN - Cotter (3/8 x 1-1/2)

2шт.

12

H313981

PIN

RETAINER - Pin

6шт.

13

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

14

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

15

131-1184

LOCK NUT,1"-8, GA

NUT - Hex (1 NC)

4шт.

16

195-112

WASHER,1 1/4" x 2 3/4" x .164"

- Flat ( 1-1/8)

1шт.

17

H656108

CAP ASSY.

Swing Cyl. Mtg.

1шт.
