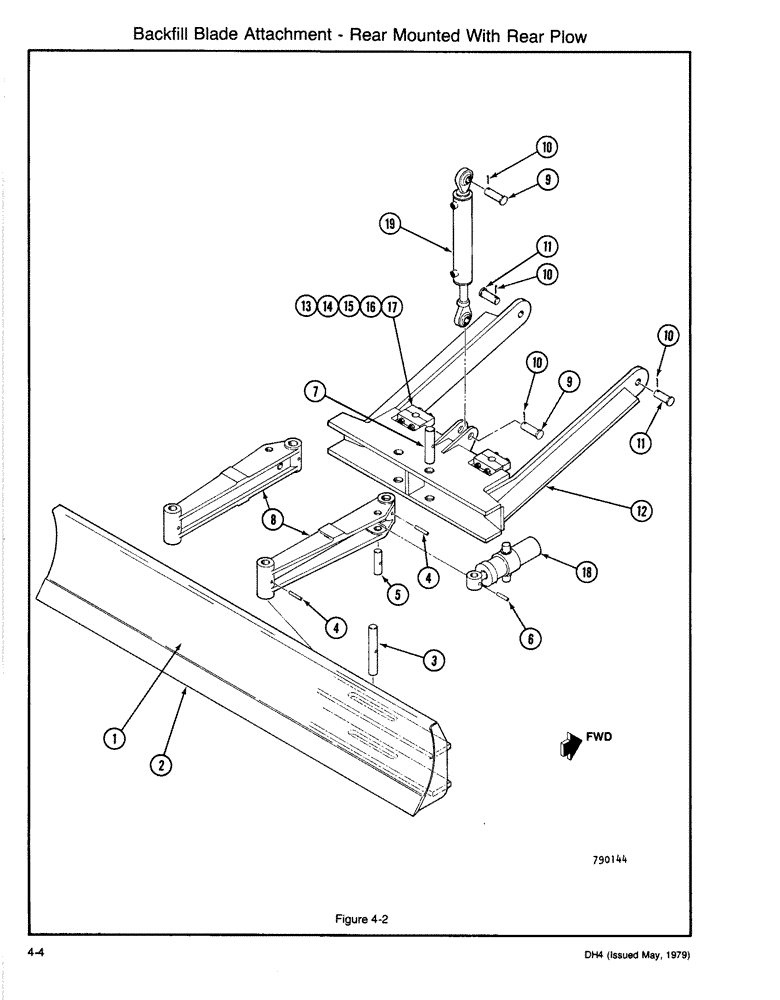

Запчасти Case DH4 (4-04) - BACKFILL BLADE ATTACHMENT - REAR MOUNTED WITH REAR PLOW (89) - TOOLS

1

H648238

BLADE

- Backfill, Includes: Ref. 2

1шт.

2

H209775

BLADE

- Leading Edge

1шт.

3

H249011

AXLE PIN

PIN - (1 1/4 x 7 3/4)

2шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

5

H248732

CYLINDER BLOCK

PIN - (1 x 3 5/8)

2шт.

6

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

2шт.

7

H248724

AXLE PIN

PIN - (1 1/4 x 5 1/4)

2шт.

8

H248609

ARM

- Cylinder

2шт.

9

H67272

PIN,25.3mm OD x 84.93mm L

PIN - Clevis (1 x 3)

2шт.

10

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

11

H37978

AXLE PIN

PIN - Clevis (1 x 2/14)

2шт.

12

H645622

FRAME

- Backfill Blade, Includes: Refs. 13-17

1шт.

13

H248716

CLAMP

4шт.

14

26-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

- NC HH (3/8 x 3 1/4 - Grade 8)

2шт.

15

26-656

CAPSCREW,Hex, 3/8" x 3 1/2", Gr 8

BOLT - NC HH (3/8 x 3 1/2 - Grade 8)

2шт.

16

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.

17

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

18

H583542

CYLINDER BLOCK

CYLINDER ASSEMBLY - Backfill Blade Angle (See Figure 4-24)

2шт.

19

H621367

CYLINDER BLOCK

CYLINDER ASSEMBLY - Backfill Blade Lift ( See Figure 4-20)

1шт.
