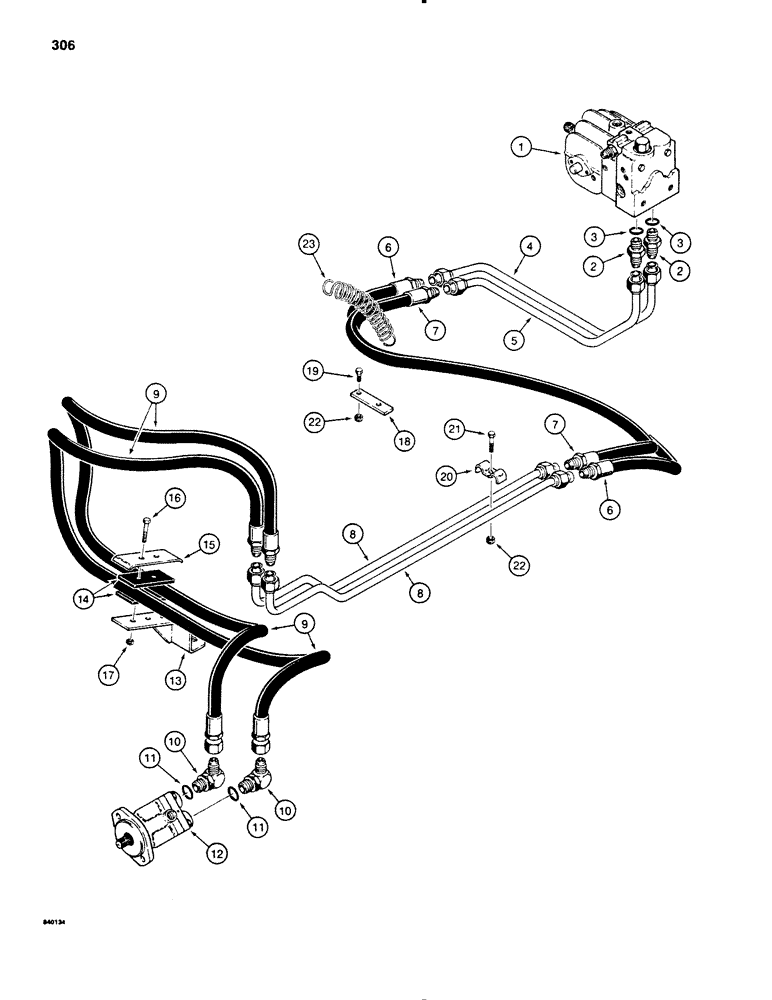

Запчасти Case SD100 (306) - LINE LAYER HYDRAULIC PUMP TO MOTOR PRESSURE CIRCUIT, USED BEF. 30+4 S/N 4700 AND BEF. 40+4 S/N 3600 (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
H577536
PUMP
ASSEMBLY - line layer, Vickers, part list figure 354
1шт.
2
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, male
2шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- adapter
1шт.
4
H562587
TUBE,0.625" OD
- pressure, pump front port, 30+4 only
1шт.
4
H571794
TUBE - pressure, pump front port, 40+4 only 0.625" OD
1шт.
5
H562579
TUBE,0.625" OD x 18.5, 4.937" L
- pressure, pump rear port, 30+4 only
1шт.
5
H571802
TUBE - pressure, pump rear port, 40+4 only 0.625" OD
1шт.
6
H202085
HOSE - pressure, 23" (584 mm) long, front, 30+4 only
1шт.
6
H227785
HOSE - pressure, 25" (635 mm) long, front, 40+4 only
1шт.
7
H202093
HOSE
- pressure, 21 - 1/2" (546 mm) ;pmg. rear. 30+4 only
1шт.
7
H202085
HOSE -pressure, 23" (584 mm) long, rear, 40+4 only
1шт.
8
H562439
TUBE,0.625" OD
- pressure
2шт.
9
H202036
HYDRAULIC HOSE,12.70 mm ID x 1752.60 mm, SAE 100R2
12.70 mm ID x 1752.60 mm, SAE 100R2
2шт.
10
218-5119
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
- 90 degree, adjustable, Includes: Ref. 11
2шт.
11
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- elbow
1шт.
12
H575282
SPARE PART
MOTOR ASSEMBLY - line layer, Vickers, parts list figure 362
1шт.
13
H575589
CLAMP
BRACKET - hose support, see figure 372 for mounting
1шт.
14
H202259
PAD
CUSHION - rubber
2шт.
15
H202234
CLAMP
- hose
1шт.
16
113-121
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
18
H202333
PLATE - hose support
1шт.
19
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
1шт.
20
H59345
CLAMP
- tube
1шт.
21
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
1шт.
23
H52548
SPRING
- hose carrier
1шт.
Выбрано товаров: 27
