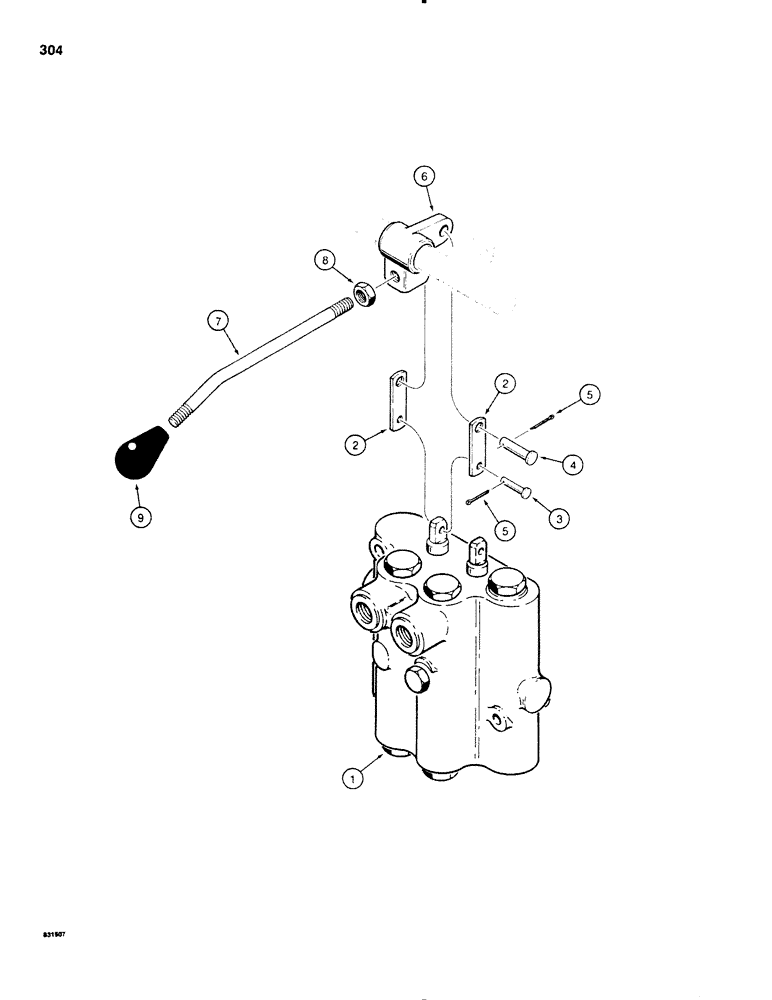

Запчасти Case SD100 (304) - LINE LAYER LIFT CONTROLS (35) - HYDRAULIC SYSTEMS

1

H550079

LOCK VALVE

VALVE ASSEMBLY - steering and lift, parts list figure 52

1шт.

2

H185066

DRAG LINK

LINK -, Serial Range: spool-lever

2шт.

3

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long, spool

1шт.

4

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long, lever

1шт.

5

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

6

H275263

LEVER

- boom handle

1шт.

7

H182063

HANDLE

- lever, lift control

1шт.

8

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

9

A14051

GRIP

KNOB - handle

1шт.
