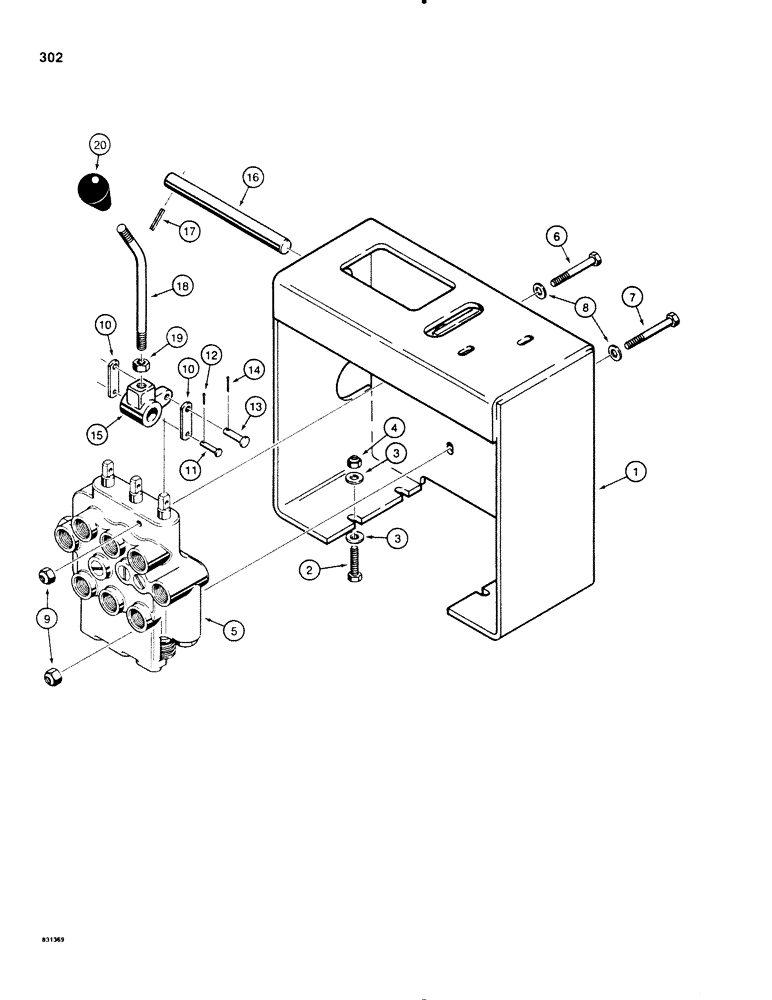

Запчасти Case SD100 (302) - LINE LAYER LIFT CONTROLS, USED WITH HYDRAULIC ANGLING BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

H628495

CONSOLE - valve mounting

1шт.

2

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16"

8шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

5

H595041

VALVE

CONTROL VALVE - three spool, parts list figure 272

1шт.

6

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

7

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

8

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-lockiing, 5/16" - 18 NC

2шт.

10

H185066

DRAG LINK

LINK -, Serial Range: spool-lever

6шт.

11

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long, spool

3шт.

12

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

13

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long lever

3шт.

14

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

3шт.

15

H275255

CRANK LEVER

LEVER - control handle

3шт.

16

H256172

SHAFT

- lever mounting

1шт.

17

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted, Shaft

1шт.

18

H191924

LEVER

HANDLE - lever

3шт.

19

87016560

JAM NUT,Jam, 3/8"-16, G5

3шт.

20

A14051

GRIP

KNOB - handle

3шт.
