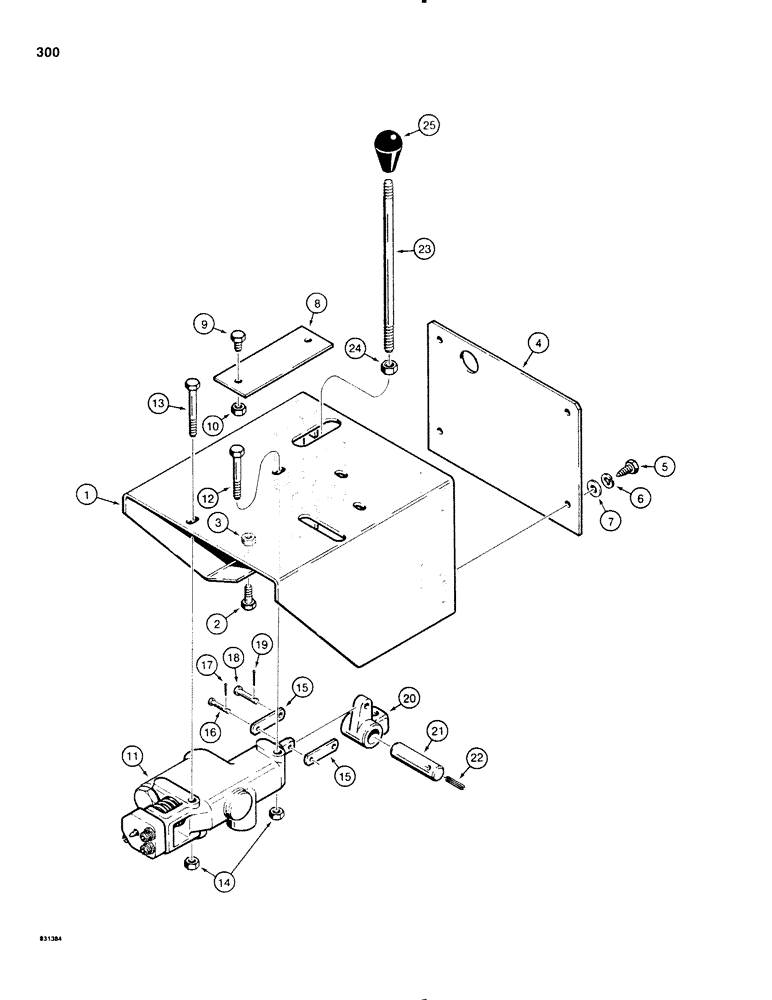

Запчасти Case SD100 (300) - LINE LAYER LIFT CONTROLS, USED WITH OR WITHOUT MECHANICAL ANGLING BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

H559930

CONSOLE

- valve mounting

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

4

H195131

PLATE

COVER - console, front

1шт.

5

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4"

4шт.

6

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16" , if used

4шт.

8

H202341

PLATE

COVER - console, top, if used

1шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

If used Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, If used

2шт.

11

H537647

LOCK VALVE

CONTROL VALVE - one spool, parts list figure 270

1шт.

12

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex head, 5/16" - 18 NC x 2-1/4"

1шт.

13

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-lockjng, 5/16" -18 NC

2шт.

15

H185066

DRAG LINK

LINK -, Serial Range: spool-lever

2шт.

16

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long, spool

1шт.

17

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

18

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long lever

1шт.

19

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

1шт.

20

H275263

LEVER

- control handle

1шт.

21

H195156

SHAFT

- lever mounting

1шт.

22

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted, Shaft

1шт.

23

H191916

ROD

HANDLE - lever

1шт.

24

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

25

A14051

GRIP

KNOB - handle

1шт.
