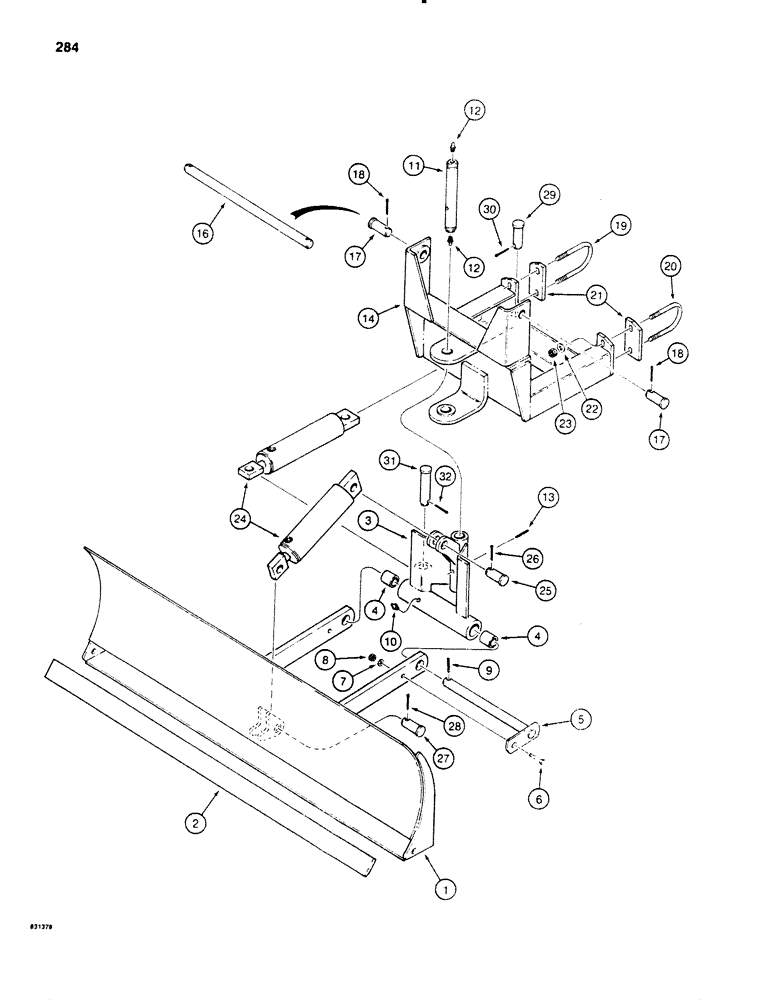

Запчасти Case SD100 (284) - BACKFILL BLADE, HYDRAULIC ANGLING, ONE ANGLE CYLINDER (35) - HYDRAULIC SYSTEMS

1

H558320

BLADE

- backfill, one cylinder, hydraulic, Includes: Ref. 2

1шт.

2

H171579

BLADE

CUTTING EDGE - backfill blade, Serial Range: welds-blade

1шт.

3

H561506

PIVOT

ASSEMBLY - blade, Includes: Ref. 4

1шт.

4

H127852

BUSHING

- pivot assembly

2шт.

5

H434372

SHAFT

- lift pivot (replaces H549006)

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

9

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

H182527

AXLE PIN

PIN - angle pivot

1шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

13

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2-1/4", Slotted

1шт.

14

H561514

FRAME

- backfill blade mounting

1шт.

H561514 BUSHING FOR THIS PART IS H179077.

1шт.

16

H201293

PIN

SHAFT - upper frame mounting, used without rops

1шт.

17

H71621

RETAINER

CLEVIS PIN - upper frame mounting, used with rops

2шт.

18

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

19

H200881

U-BOLT

- short, used on left-hand side without spacers, leg length is 2-3/4", if used

1шт.

19

H406470

U-BOLT

- long, used on left-hand lside, leg length is 3-3/4", if used

1шт.

20

H377275

U-BOLT

- short, used on right-hand side, leg length is 3-3/8"

1шт.

21

H406462

SPACER - frame mounting, if used

2шт.

22

195-533

WASHER,1/2", SAE

- flat, 1/2"

4шт.

23

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

24

H504076

CYLINDER BLOCK

CYLINDER - lift or angle, parts list figure 276

2шт.

25

H71621

RETAINER

CLEVIS PIN - upper lift cylinder mounting, closed end

1шт.

26

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

27

H65011

AXLE PIN,25.3mm OD x 75.41mm L

CLEVIS PIN - lower lift cylinder mounting, rod end

1шт.

28

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

29

H67272

PIN,25.3mm OD x 84.93mm L

CLEVIS PIN - angle cylinder mounting, rod end

1шт.

30

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

31

H79293

AXLE PIN,28.5mm OD x 128.59mm L

CLEVIS PIN - angle cylinder mounting, closed end

1шт.

32

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.
