Запчасти Case SD100 (274) - H594887 AND H616763 SELECTOR VALVE (35) - HYDRAULIC SYSTEMS

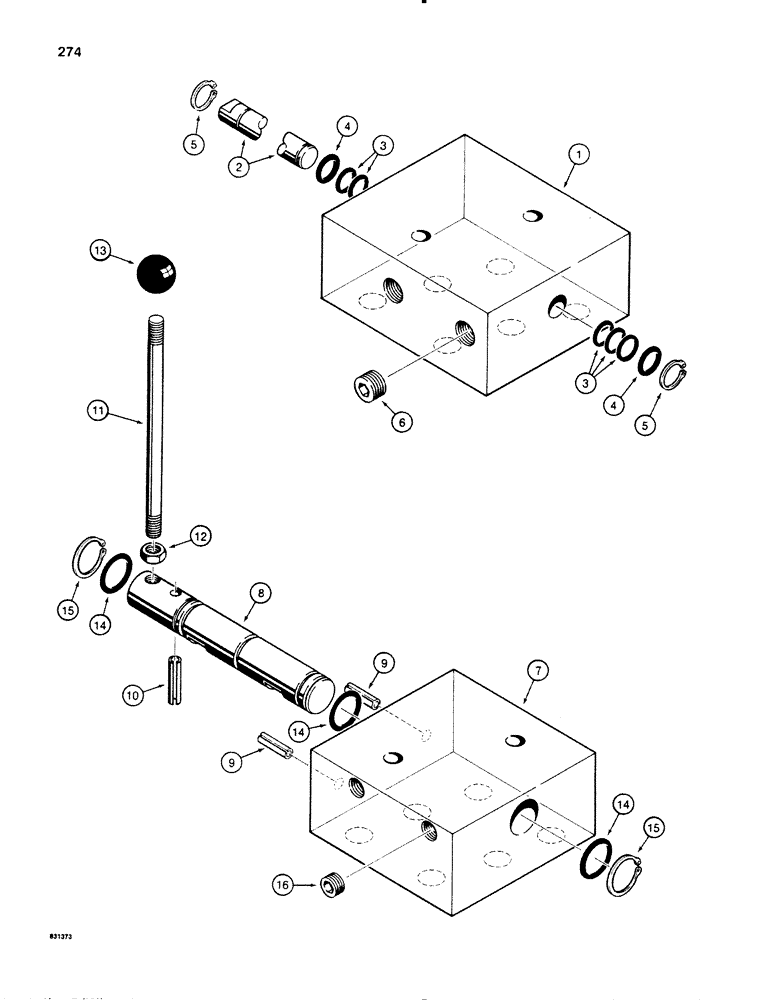

Схема запчастей Case SD100 - (274) - H594887 AND H616763 SELECTOR VALVE (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

H594887

VALVE

SELECTOR VALVE - push-pull, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- inner seal

5шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- outer seal

2шт.

5

A39489

SNAP RING,#43, Ext

RING, Snap, , spool #43, Ext

2шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

PIPE PLUG - hex socket head, 3/8" NPT

4шт.

H616763

LOCK VALVE

SELECTOR VALVE - rotational, Includes: Ref. 7-16

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve H616763 selector

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve H616763 selector

1шт.

9

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, , H616763 selector valve 1/4" x 1", Slotted

2шт.

10

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , H616763 selector valve 1/4" x 1 1/2", Slotted

1шт.

11

NSS

NOT SOLD SEPARAT

HANDLE - valve H616763 selector

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

Jam, 5/16"- 24, G5, H616763 selector valve

1шт.

13

H249839

KNOB

- handle H616763 selector valve

1шт.

14

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- spool seal H616763 selector valve

3шт.

15

B18206

SNAP RING,#87, Ext

RING, Snap, , spool, H616763 selector valve #87, Ext

2шт.

16

221-841

PLUG

PIPE PLUG - hex socket head, 1/4" NPT H616763 selector valve

4шт.

Выбрано товаров: 18
