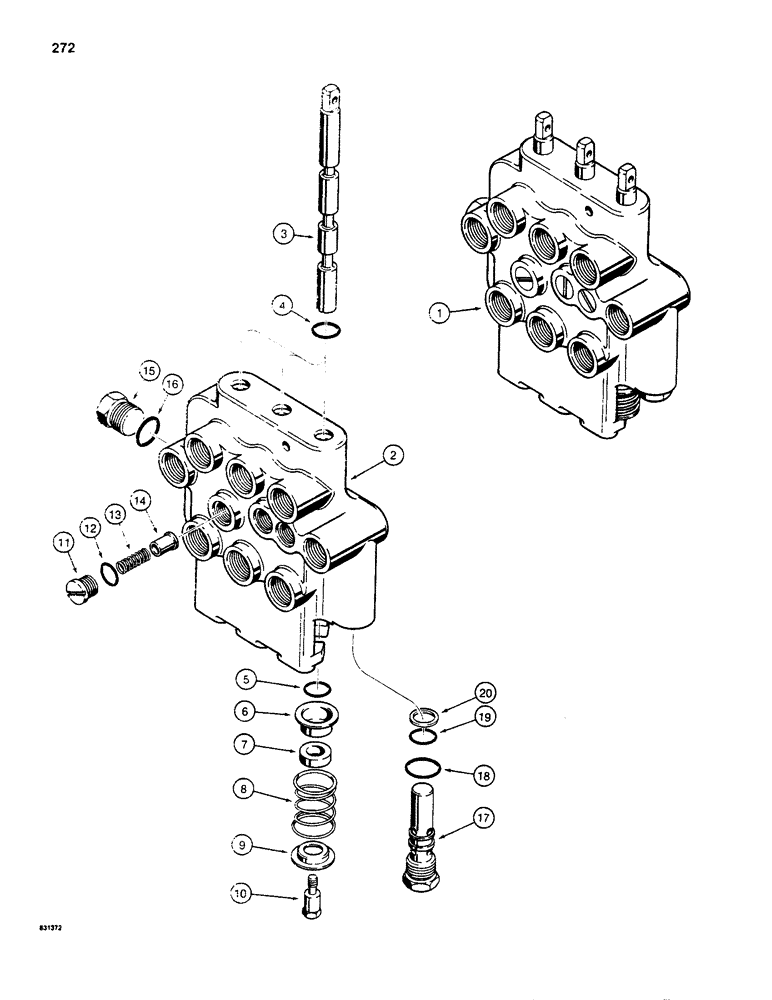

Запчасти Case SD100 (272) - H595041 CONTROL VALVE, THREE SPOOL (35) - HYDRAULIC SYSTEMS

1

H595041

VALVE

CONTROL VALVE - three spool, Cessna No. 30503-AAE, Includes: Ref. 2-20

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

3шт.

4

F37887

O-RING

- spool, control end

3шт.

Part of seal kit P/N H598102

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool, plug end

3шт.

Part of seal kit P/N H598102

1шт.

6

H52902

CAP

SEAT - spring, upper

3шт.

7

H746164

WASHER

- spacer

3шт.

8

H220517

SPRING

- centering, spool

3шт.

9

F59116

WASHER

SEAT - spring, lower

3шт.

10

H428292

SCREW,1/4" - 20 x 0.972"

- spring retaining, spool

3шт.

H47506

PLUG

ASSEMBLY - load check, Includes: Ref. 11, 12

3шт.

11

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

12

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- plug

1шт.

Part of seal kit P/N H598102

1шт.

13

FH730374

SPRING

- load check

3шт.

14

H52894

PLUNGER

- load check (replaces A52894)

3шт.

86512512

PLUG,7/8" - 14 ORB

Assy, Power beyond, Incl. Ref. 15, 16 Hex Hd, 7/8"-14 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

H102053

VALVE

MAIN RELIEF VALVE - control valve, Includes: Ref. 17-20

1шт.

17

NSS

NOT SOLD SEPARAT

RELIEF VALVE - control valve

1шт.

18

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outer,large (replaces 27365)

1шт.

Part of seal kit P/N H598102

1шт.

19

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, small

1шт.

Part of seal kit P/N H598102

1шт.

20

G32626

RING

BACKUP RING - inner O-ring

1шт.

Part of seal kit P/N H598102

1шт.

H598102

KIT - seal, Includes: Refs. 4, 5, 12, 18, 19 and 20

1шт.
