Запчасти Case SD100 (268) - SELECTOR VALVE HYD. CIRCUIT, TRACTOR WITH LINE LAYER & BACKFILL BLADE, & THREE SPOOL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

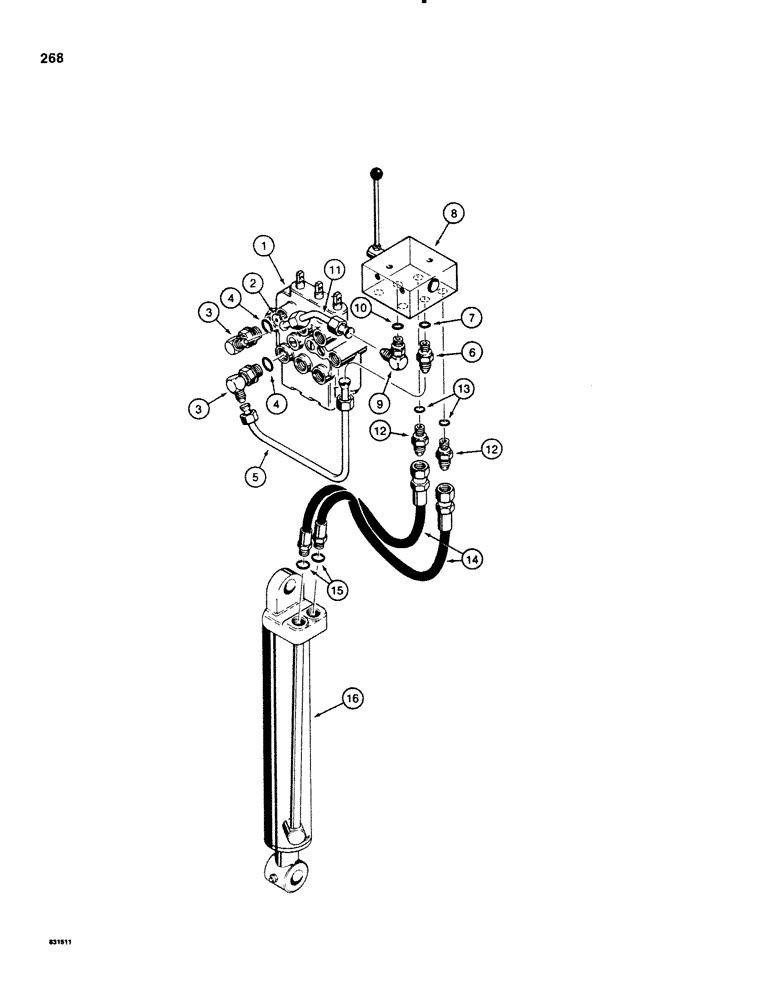

Схема запчастей Case SD100 - (268) - SELECTOR VALVE HYD. CIRCUIT, TRACTOR WITH LINE LAYER & BACKFILL BLADE, & THREE SPOOL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

H595041

VALVE

CONTROL VALVE - three spool, parts list figure 272

1шт.

2

H206236

RESTRICTOR - special, .078" (1.98 mm) orifice, port "A" only

1шт.

3

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

5

H629675

TUBE,0.5" OD

- to "A" port on selector valve

1шт.

6

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, Includes: Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

8

H616763

LOCK VALVE

VALVE ASSEMBLY - selector, parts list figure 274

1шт.

9

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, Includes: Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

11

H629659

TUBE,0.5" OD x 2.22, 2.22" L

- to "B" port on selector valve

1шт.

12

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, Includes: Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

14

H199380

HOSE,0.38" ID x 15.00", SAE 100R1

Valve to Lift Cylinder, Includes: Ref. 15 0.38" ID x 15.00", SAE 100R1

2шт.

16

H559435

CYLINDER BLOCK

CYLINDER - blade lift, parts list figure 278

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

Выбрано товаров: 16
