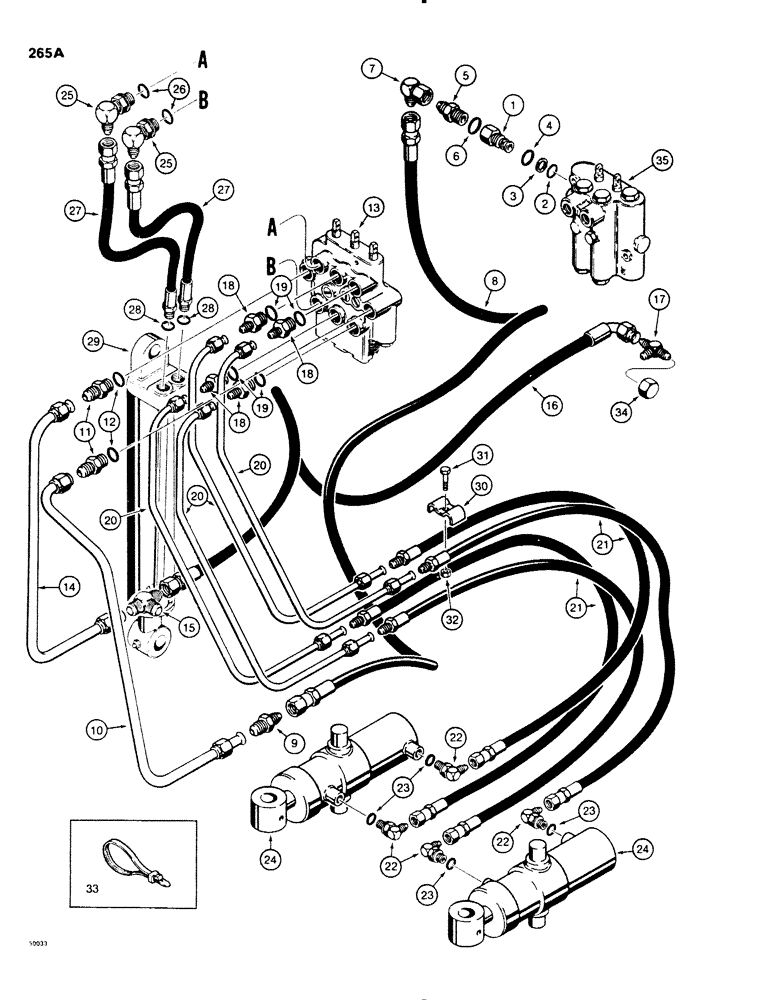

Запчасти Case SD100 (265A) - BACKFILL BLADE HYDRAULIC CIRCUIT, HYDRAULIC ANGLING, TWO ANGLE CYLINDERS (35) - HYDRAULIC SYSTEMS

D61608

SLEEVE

PLUG ASSEMBLY - power beyond, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond, Includes: Ref. 2-4

1шт.

2

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

3

34493

ANGLE BAR

BACKUP RING - small O-ring

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

8

H249037

HOSE

- 109" (2769 mm) long, pressure

1шт.

9

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER - straight male

1шт.

10

H628651

TUBE,0.625" OD

- pressure, hose to valve

1шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

13

H595041

VALVE

CONTROL VALVE - three spool, parts list figure 272

1шт.

14

H628699

TUBE - return, Serial Range: valve-hose

1шт.

15

218-595

TEE,7/8"-14, 37 Degree

- tube, male

1шт.

16

H213025

HOSE ASSY.

HOSE - return, 16" (406 mm) long

1шт.

17

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- return to reservoir

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 19

4шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

20

H628701

TUBE,0.375" OD x 10, 7" L

- valve to hose

4шт.

21

H256529

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1A

- Tube to angle cylinder 6.35 mm ID x 838.20 mm, SAE 100R1A

4шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 23

4шт.

23

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

24

H583542

CYLINDER BLOCK

CYLINDER - angle, parts list figure 280

2шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

27

H199380

HOSE,0.38" ID x 15.00", SAE 100R1

Valve to Cylinder, Includes: Ref. 28 0.38" ID x 15.00", SAE 100R1

2шт.

29

H559435

CYLINDER BLOCK

CYLINDER - blade lift, parts list figure 278

1шт.

30

H59345

CLAMP

- tube, if used

2шт.

31

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

2шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, if used

2шт.

33

R38237

STRAP

TIE STRAP - hose

1шт.

34

218-756

CAP,37 Degree, 7/8"-14

Tee, If used 37º, 7/8"-14

1шт.

35

REF

INSTRUCTION

VALVE ASSEMBLY - boom and steering, parts list figure 52

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
