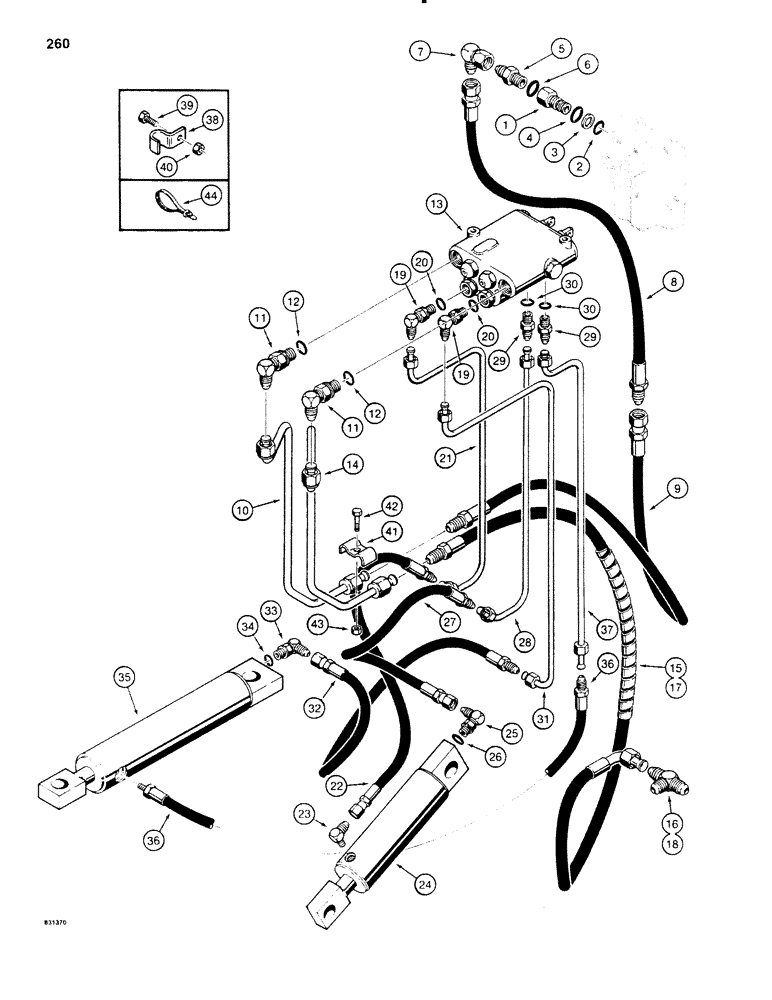

Запчасти Case SD100 (260) - BACKFILL BLADE HYDRAULIC CIRCUIT, HYDRAULIC ANGLING, ONE ANGLE CYLINDER (35) - HYDRAULIC SYSTEMS

D61608

SLEEVE

PLUG ASSEMBLY - power beyond, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond, Includes: Ref. 2-4

1шт.

2

A17523

O-RING - small

1шт.

3

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

5

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 6 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

8

H202101

ELECTRICAL WIRE

HOSE - 28" (711 mm) long, pressure from steering valve

1шт.

9

H247841

HOSE

- 34" (864 mm) long, pressure

1шт.

10

H561993

TUBE,0.5" OD

- pressure, hose to valve

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 12

2шт.

13

H553818

VALVE

CONTROL VALVE - two spool, parts list figure 52

1шт.

14

H562009

TUBE,0.5" OD

- return, valve to hose

1шт.

15

H196097

HOSE,0.38" ID x 54.00"

Return, Used Before 30+4 sn 5210 and Before 40+4 sn 3930 0.38" ID x 54.00"

1шт.

16

218-594

TEE,3/4"-16, 37 Degree

- return, used with ref. 15, see figure 164, ref. 9 for return circuit

1шт.

17

H281576

HOSE

- 90 degree tube end, 89" (2261 mm) long, return, used on 30+4 SN 5210 and after and on 40+4 SN 3930 and after

1шт.

18

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Return, Used with Ref. 17, See figures 168 - 174 for return circuit 3/4"-16, 37º x 3/4"-18, O-Ring Run

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, valve to tube, Includes: Ref. 20

2шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

21

H561969

TUBE,0.375" OD

- valve to rod end of cylinder

1шт.

22

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

Tube to Cylinder Rod End 6.35 mm ID x 533.40 mm, SAE 100R1

1шт.

23

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, 3/8" NPT at cylinder

1шт.

24

H504076

CYLINDER BLOCK

CYLINDER - lift or angle, parts list figure 276

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 26

1шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

27

H170753

HYDRAULIC HOSE,6.35 mm ID x 355.60 mm, SAE 100R1

Cylinder Closed End to Tube 6.35 mm ID x 355.60 mm, SAE 100R1

1шт.

28

H561944

TUBE,0.375" OD

- cylinder closed end to valve

1шт.

29

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTE R- straight, Incl. Ref. 30

2шт.

30

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

31

H561985

TUBE,0.375" OD

- valve to cylinder closed end

1шт.

32

H195362

HYDRAULIC HOSE,6.35 mm ID x 685.80 mm, SAE 100R1

Tube to Cylinder Closed End 6.35 mm ID x 685.80 mm, SAE 100R1

1шт.

33

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 34

1шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

35

H504076

CYLINDER BLOCK

CYLINDER - lift or angle, parts list figure 276

1шт.

36

H201673

HOSE

- 13" (330 mm) long, cylinder rod, Serial Range: end-tube

1шт.

37

H561977

TUBE,0.375" OD

- cylinder rod end ot valve

1шт.

38

H51763

CLAMP

- tube, hose to console, if used

1шт.

39

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

1шт.

40

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

41

H59345

CLAMP

- tube

2шт.

42

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

43

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

44

R38237

STRAP

TIE STRAP - hose

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
